In-Line Digital Sand Testing

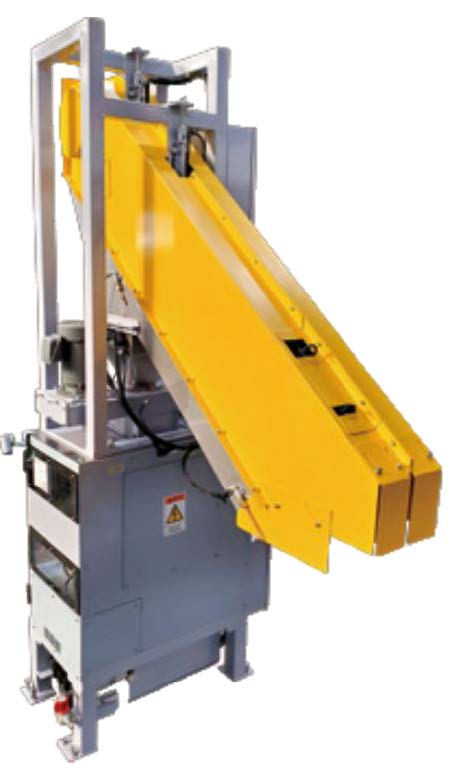

Sinto’s In-Line Sand Testing (IDST) can measure sand properties immediately before the molding machine:

▶ Compressive strength
▶ Moisture
▶ Permeability
▶ Sand temperature
▶ Active clay (calculated value)

ADVANTAGES OF IDST:

In a green sand molding line, due to distance between the mixing process and molding process, sand properties differ between that at the mixer and that actually used at the molding machine.  This difference is caused by the sand transportation system design, climate, etc.  As a better sand control method for improving casting quality, IDST allows control of sand properties right before molding machine, allowing easier tracing of molding sand than in the past.

FEATURES:

  • Can be integrated with existing online muller controls to minimize sand variability between the muller and the molding machine
  • Eliminates the need for operator muller compactability adjustment due to changing sand and environmental conditions
  • Acquired data can be exported for display on production monitoring systems such as Sinto Analytics

Graphs

The measured compactability at the molding machine decreases through evaporation as the foundry sand and environmental temperature and relative humidity changes

By incorporating the IDST’s in-line real time measurement with existing muller compactability controls, a more stable compactability can be achieved at the molding machine.

Request More Info

Specs

Specs

Primary Power Supply220V x 60Hz, AC100V, 3 phase

Transformer required if primary is 480V

Compressed Air0.51-0.59 Mpa
Combined Approx. Weight
600Kg
Belt Conveyor Requirements
SpeedApprox. 2FPS
Running TimeGreater than 4 seconds
No Sand Lump(Φ0.8in and under)

SAND PROPERTIES:

  • Compactability: 25%~55% range
  • No sand lump (Φ0.8in and under)
  • Fluctuation sand layer height (Within ±0.4 in)
  • Sand Depth on Belt Conveyor required is 4.25”
