Flaskless Molding Machines

Sinto America has a wide line up of flaskless molding machines which can be adapted to your specific production output needs: compact models at reasonable prices, 2-station or 4-station models ideal for sand molds with many cores, high-speed molding models, etc. Select the best flaskless molding machine for your business based on mold rate and flask size!

Product Description Flask Size Mold Rate Molding System

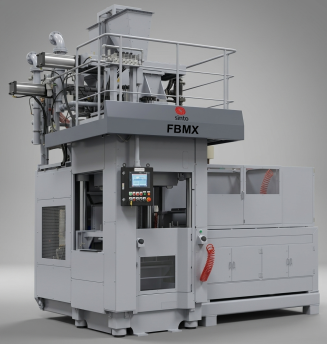

FBMX Flaskless Molding Machine

High speed, Horizontal Parting Flaskless Molding Machine 24" x 28" 144 molds/hour Aeration Sand Filling

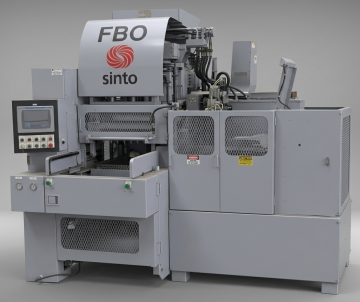

FBO Flaskless Molding Machine

Single Station, flaskless molding series with a wide variety of mold dimensions with high quality molding capabilities 14" x 19" , 16" x 20", 20" x 24", 20" x 26", 20" x 28", 24" x 28", 24" x 30", 30" x 32", 32" x 32" Ranging from 80-150 Molds/Hour Top Blow + Squeeze (Aeration Sand Filling models available)

FBOX Flaskless Molding Machine

Compact Single station Flaskless molding machine with a mold capacity up to 200 molds/hour 14" x 19", 20" x 24", 20" x 26", 20" x 28", 24" x 28" 171-200 molds/hour Aeration Sand Filling + Squeeze

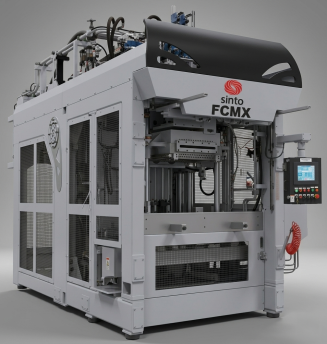

FCMX Flaskless Molding Machine

High speed, 2-station molding machine using Aeration Sand filling technology for complicated patterns and deep pockets 16" x 20", 20" x 24", 20"x 26", 20" x 28" 171-200 molds/hour Aeration Sand Filling

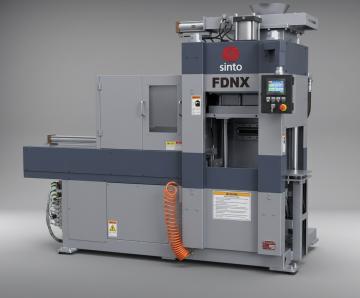

FDNX Flaskless Molding Machine

Ideal for switching from manual molding to automatic molding 14" x 19", 16" x 20" 90 molds/hour Aeration Sand Filling
