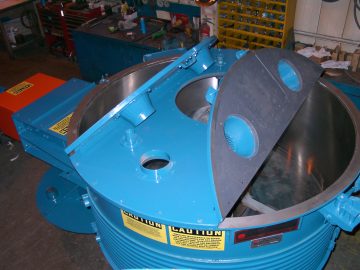

Speed Compounder

Our Speed Compounders delivers the most consistent performance with the most precise control for battery past production.

FEATURES:

  • PLC Control system and patented Batch Saver Circuitry which incorporates precise, automatic control
  • Built-in automated formula correction
  • Ducted multi-port air cooling
  • Temperature controlled thermo couple that is re-set to a specific temperature at the start of each cycle
  • Customize your system by adding pneumatically operated gates, doors, and dampers

Specifications

Model Prepared Batch Size Motor HP Static Weight Exhaust Air Requirements
35-III 600 lbs. (273 kg) 203650 lbs. (1656 kg) 1050 CFM
(32 cu/m)
45-III 1200 lbs. (545 kg) 305100 lbs. (2314 kg) 2100 CFM
(64 cu/m)
55-III 2400 lbs. (1091 kg) 508800 lbs. (3993 kg) 4200 CFM
(129 cu/m )
75-III 4500 lbs. (2045 kg) 10011,393 lbs (5170 kg) 7875 CFM
(241 cu/m)

Options

  • – Stainless Steel Contact Surfaces
  • – 2nd Discharge Door
  • – Water Cooling Jacket
  • – Cooling Air Blower
  • – Cooling Air Conditioner
  • – Paste Feeder
  • – Weigh Systems
  • – Wet/Dry Collectors
  • – Platform/Structural Steel
  • – System Controls
