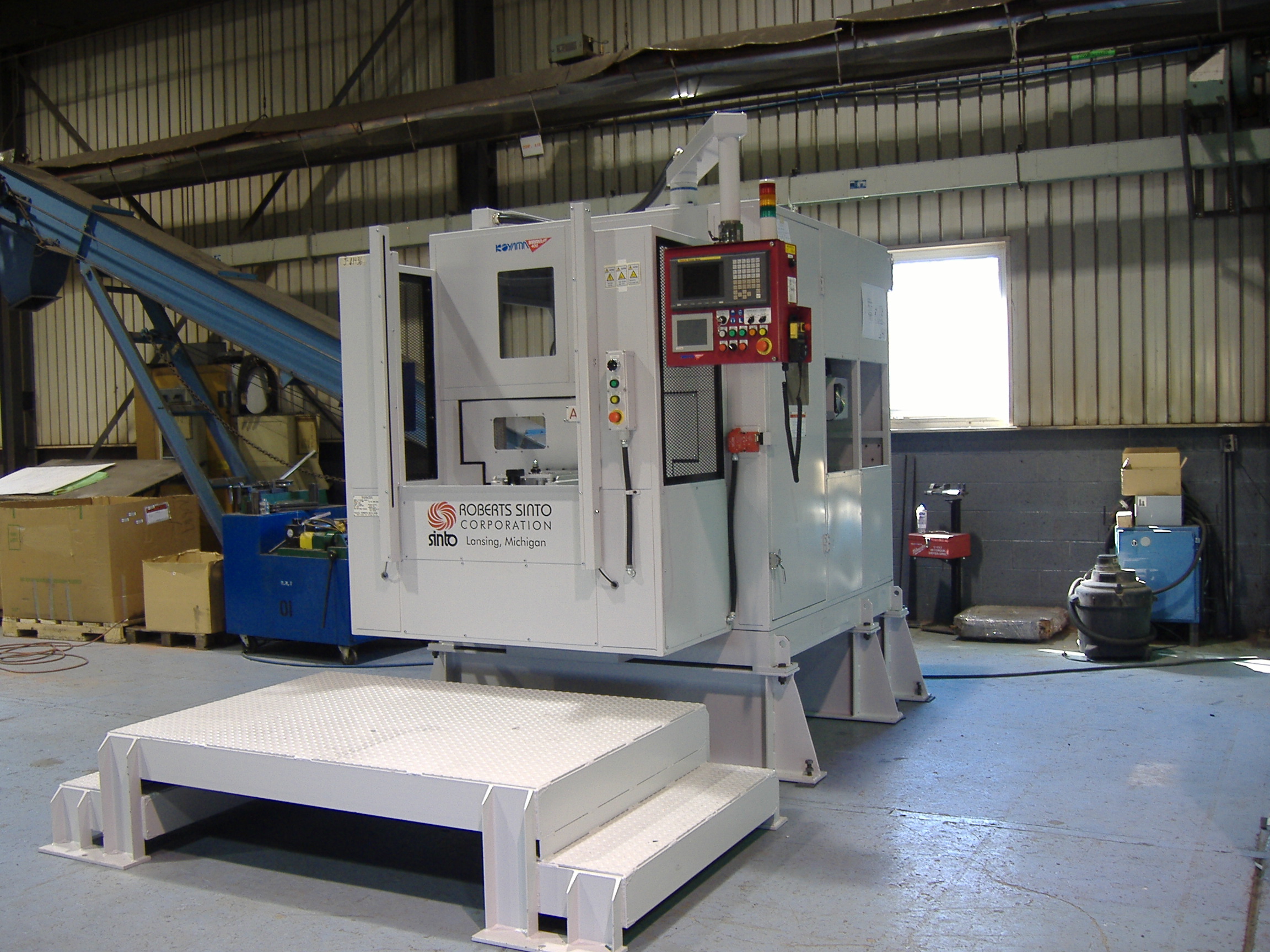

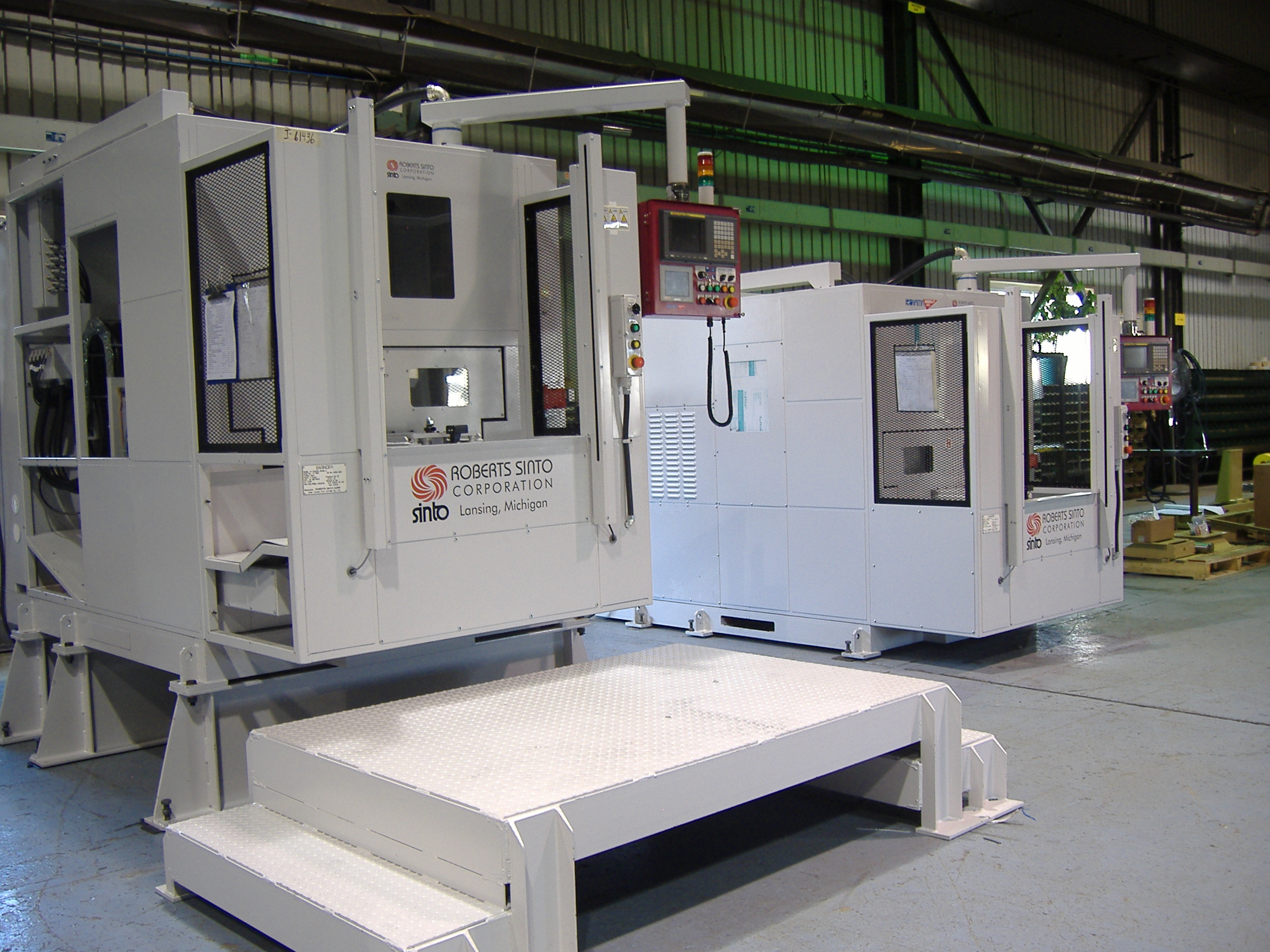

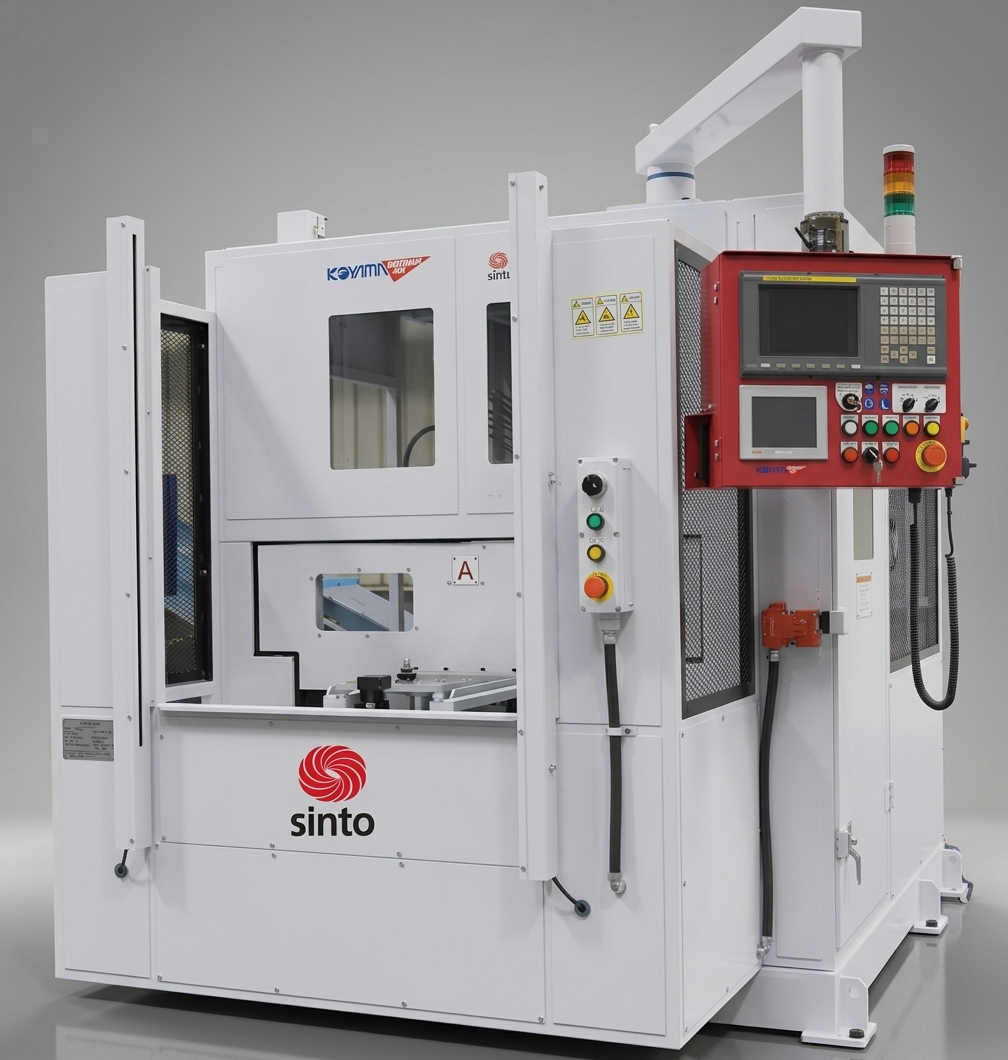

An innovative, high speed, automated grinder/deburring/cutting machine that dramatically reduces finishing time and labor costs.
- Ideal for small to medium size castings
- Alloys: Gray and Ductile Iron, Brass, Bronze, Aluminum
- Work Envelope: 20″ dia. x 7.8″ H
- Max Part Weight: 110 lbs. (50 kg)
FEATURES:
- Suitable for grinding inside and outside of complex castings
- Designed for fast product changeovers. (Less than 5 minutes)
- Simple & easy programming and operation for maximum uptime. Designed to be intuitive and allows the operator to teach the machine to automatically perform the same operations that would otherwise be performed manually
- 2 or 4-position servo pallet changer
- Rotating main diamond wheel with pivoting small diamond pencil tool
- Long lasting diamond tools save operation costs and dust generation
- High speed and efficient processing enables productivity and a high finishing quality
- OPTIONS: Pencil tools available in various configurations, air cooler

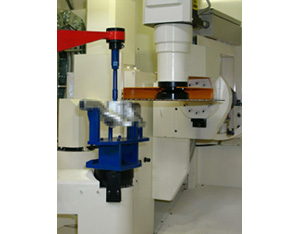

ALUMINUM CAPABILTIES:

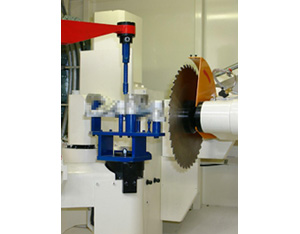

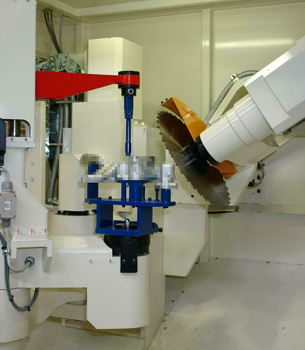

- Automatic cutting machine for gate and parting line flash removal on small to medium size aluminum castings

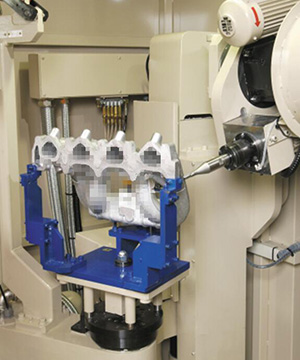

- Key functions: Angled cutting, horizontal cutting, vertical cutting, inside & contour finishing
- OPTIONS: Chip conveyor, mist lubricator for main cutting wheel, floor chute air blow off
We also provide complete robotic load and unload integration and vision systems that can be applied to the BARINDER® Machine to maximize throughput and minimize labor.
Specifications
Gray and Ductile Iron, Brass, Bronze:
| Work Envelope | 20" dia x 7.8" H (500 mm dia x 200 mm H) |
|---|---|
| Max Total Weight (Part + Fixture and other loading materials) | 110 lbs (50 kg) |
| Standard Main Tool (Other options available) | Diamond wheel, 14" dia. X 0.47" thick (355 mm dia x 12 mm thick) |
| Main Tool Drive Spindle | Operating Torque: 6 hp (4.5 kW) Peak Torque: 25 hp (18.6 kW) |
| Auxillary Grinding Spindle | 2.95 hp (2.2 kW) High-Speed Inverter Drive |
| Grinding Wheel Tilt Motion | 130 degrees |
| Number of Axes | 7 |
| Weight | 5,200 lbs. (2400 kg) |
Aluminum:
| Work Envelope | 20" dia x 7.8" H (500 mm dia x 200 mm H) |
|---|---|
| Max Total Weight (Part + Fixture and other loading materials) | 110 lbs (50 kg) |
| Standard Main Tool (Other options available) | Chip Saw, 14" dia. X 0.47" thick (355 mm dia x 12 mm thick) |
| Main Tool Drive Spindle | 25 hp (18.6 kw) Max Servo Motor |
| Auxillary Grinding Spindle | 5 hp (3.7 kw) High-Speed Inverter Drive |
| Grinding Wheel Tilt Motion | 130 degrees |
| Work Load/Unload | 2-position pallet changer |
| Number of Axes | 7 |
| Weight | 5,200 lbs. (2400 kg) |
Work Examples
Videos
BARINDER® Automatic Grinding System:
Vision Based Robotic BARINDER® Load/Unload System:
Grede Liberty Purchases Sinto America Auto Grinding Machine:
Sinto America’s X7i-FDH22R-455GR-C Auto Grinding BARINDER®:
BARINDER® Grinder Fixture Placement and Removal:

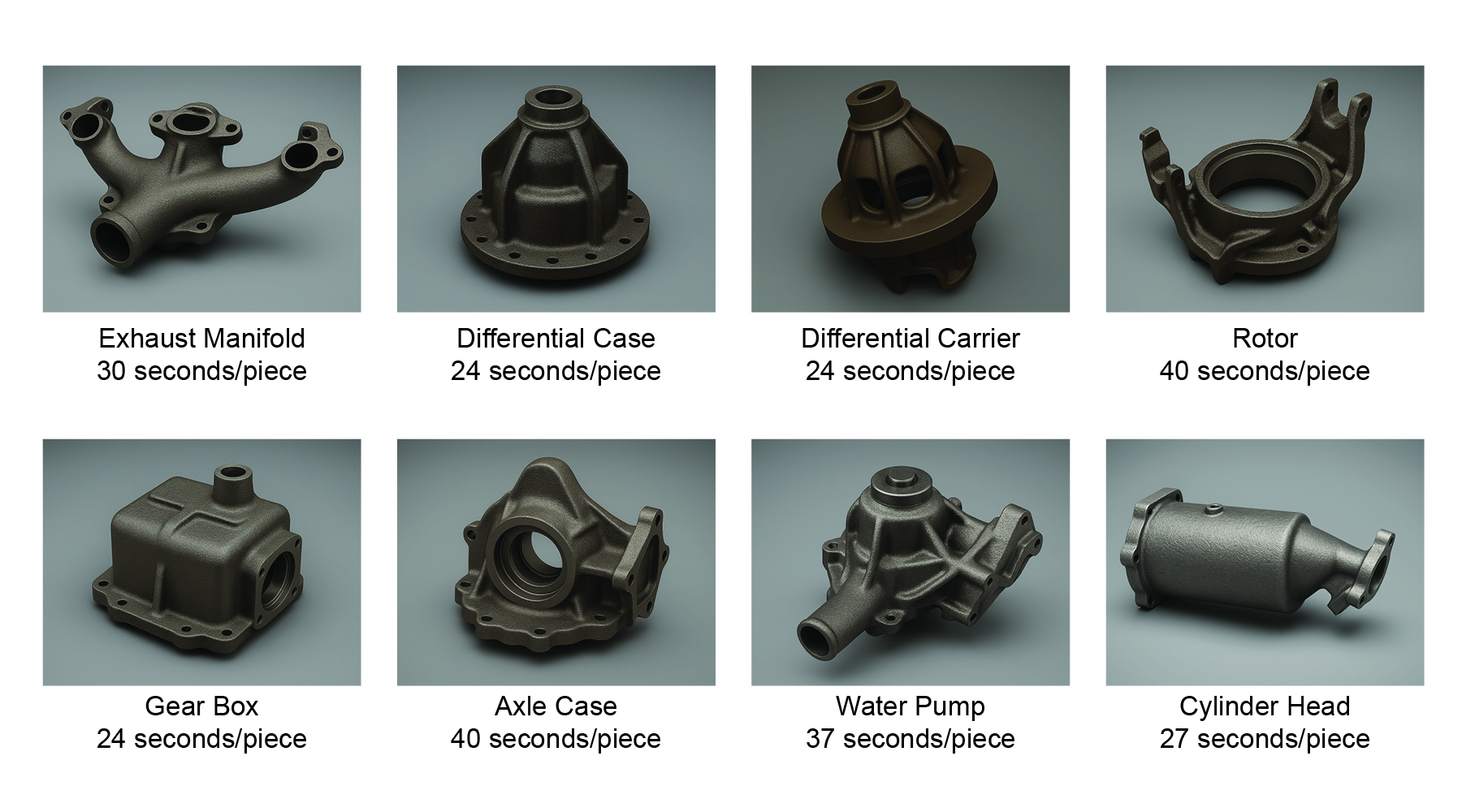

Medium Casting Grinding:
Case Studies and Testimonials
Click on the links below to see recent Auto Grinding BARINDER® projects.
Seneca Foundry– X7i-FDH22R-455GR-C BARINDER® Grinder
Grede Libery– X7i-FDH22R-455GR-C BARINDER® Grinder
