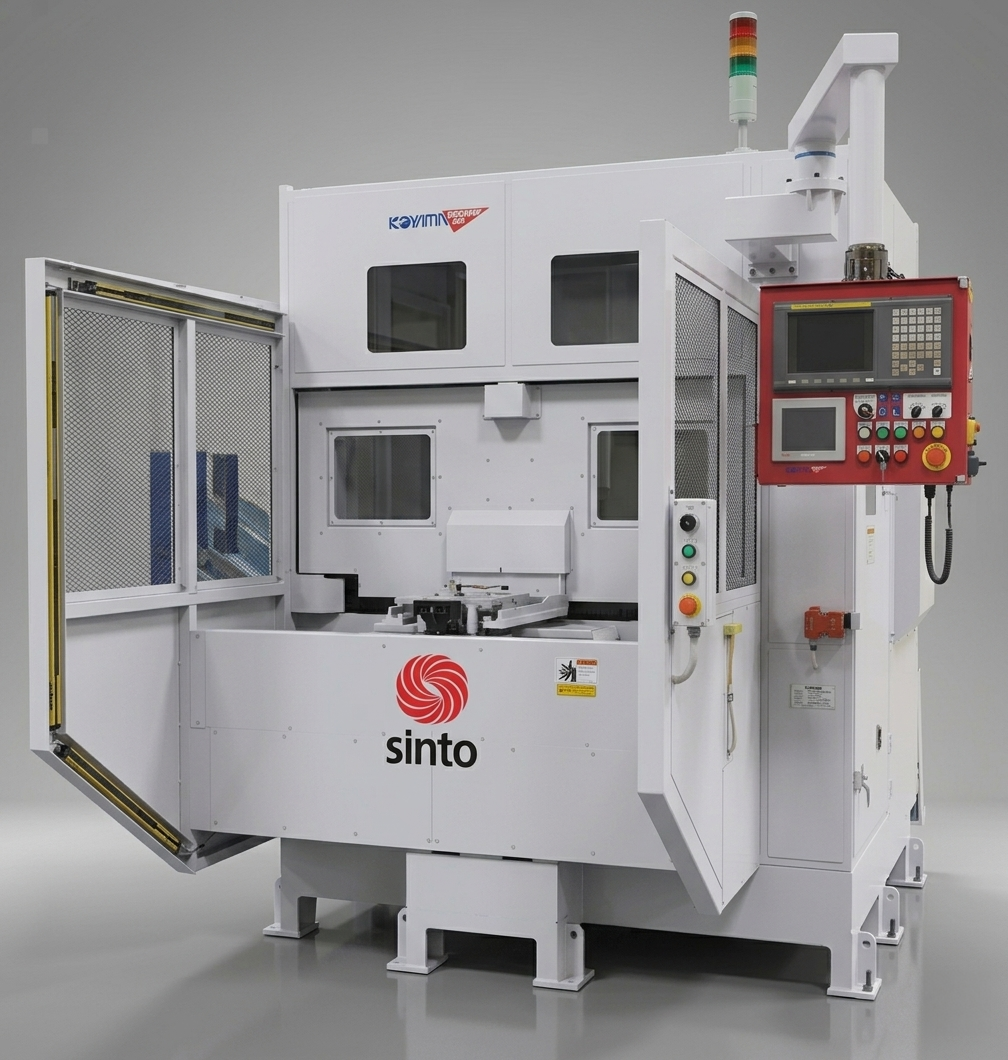

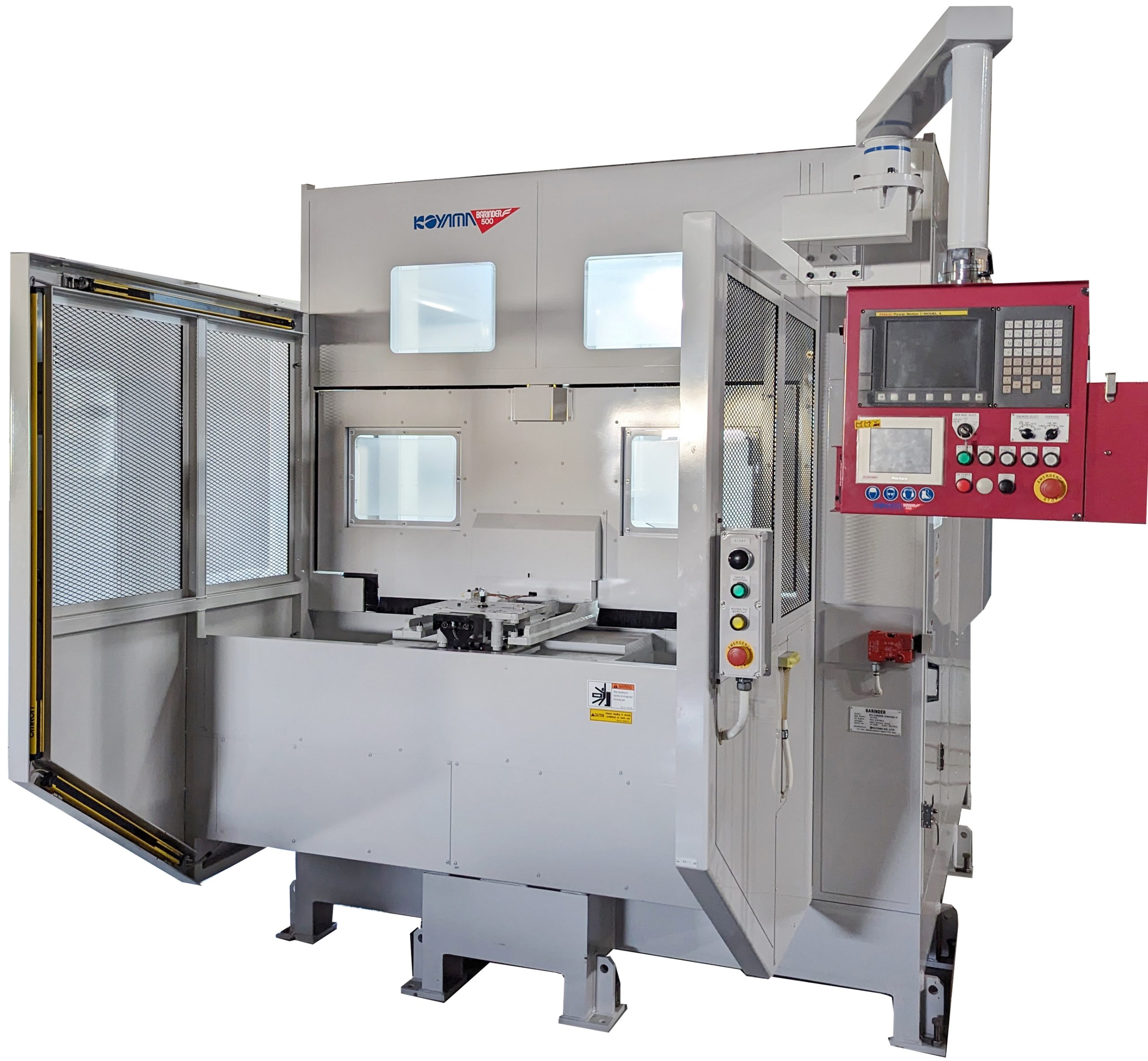

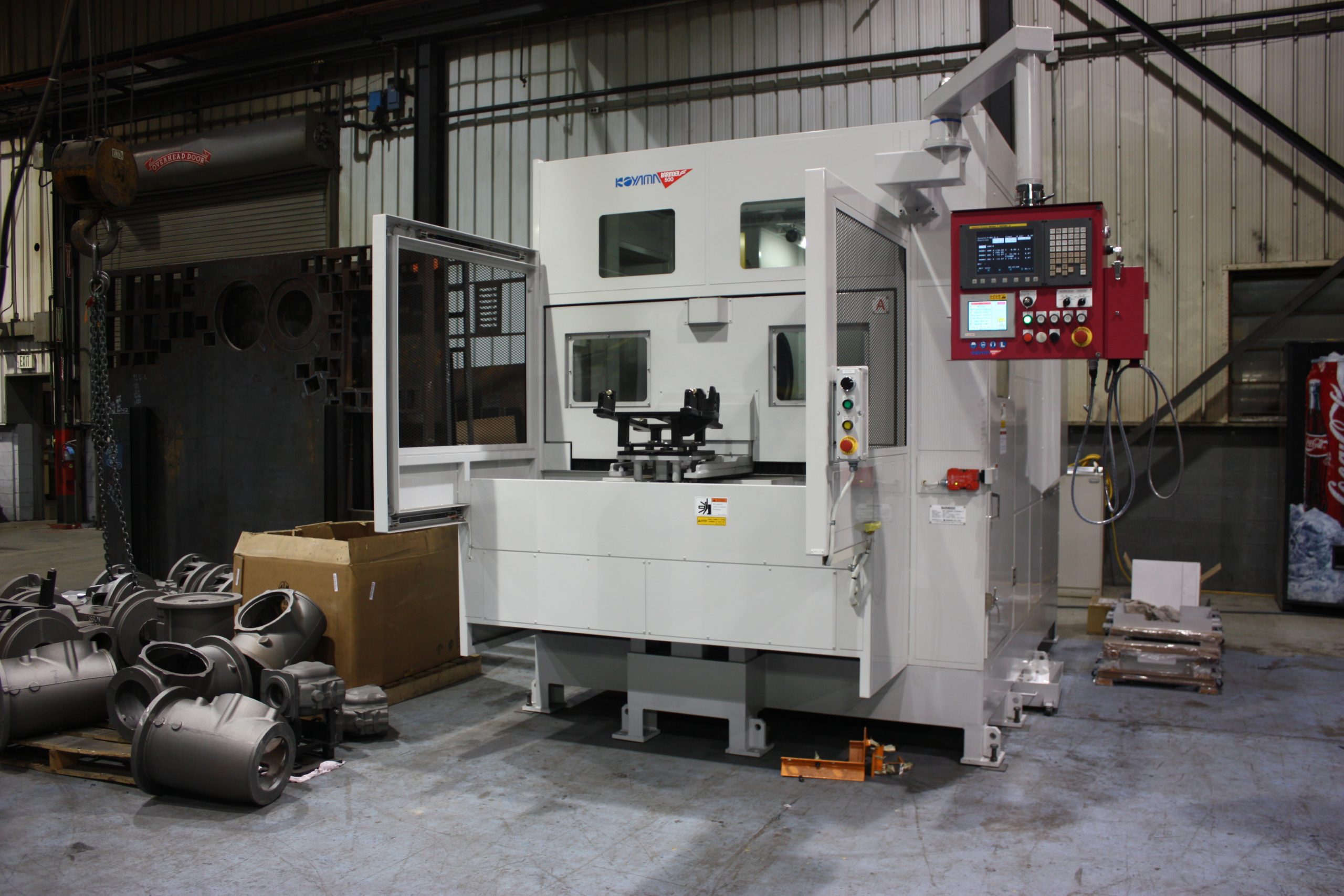

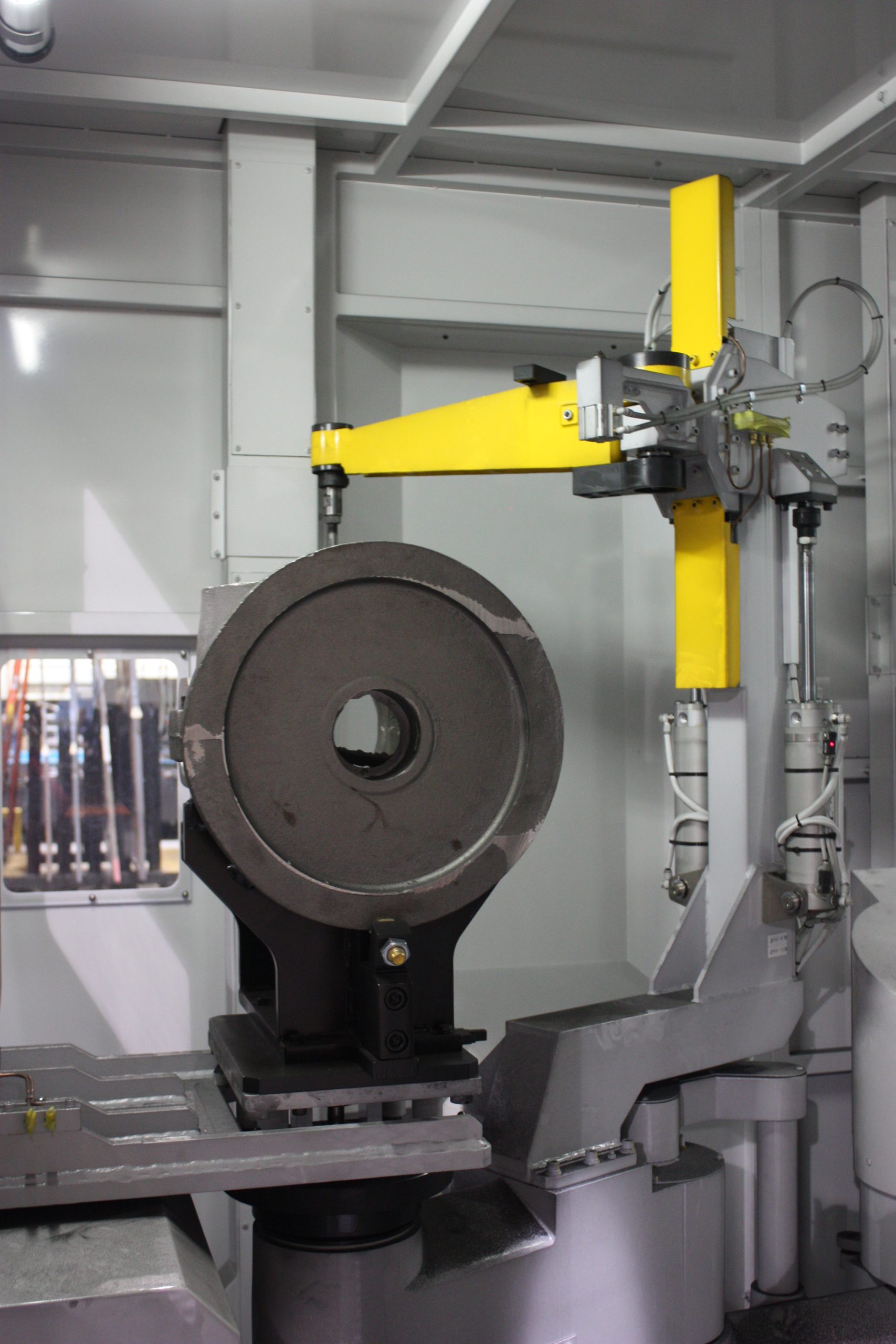

An innovative, high speed, automated grinder/deburring/cutting machine that dramatically reduces finishing time and labor costs.
- Ideal for medium to large size castings
- Alloys: Gray and Ductile Iron, Brass, Bronze, Aluminum
- Work Envelope: 31.5″ dia. x 21.5″ H
- Max Part Weight: 330 lbs. (150 kg)
The BARINDER® has easy-to-learn programming, which is designed to be intuitive and allows the operator to teach the machine to automatically perform the same operations that would otherwise be performed manually. The Barinder is designed for fast product changeovers. The part holding fixtures are generally changed with simple hand tools in a few minutes.
BARINDER® FEATURES:
- Automatic grinding-deburring machine for medium to large size castings
- Angled grinding and high speed precision
- Suitable for grinding/finishing inside and outside of complex castings

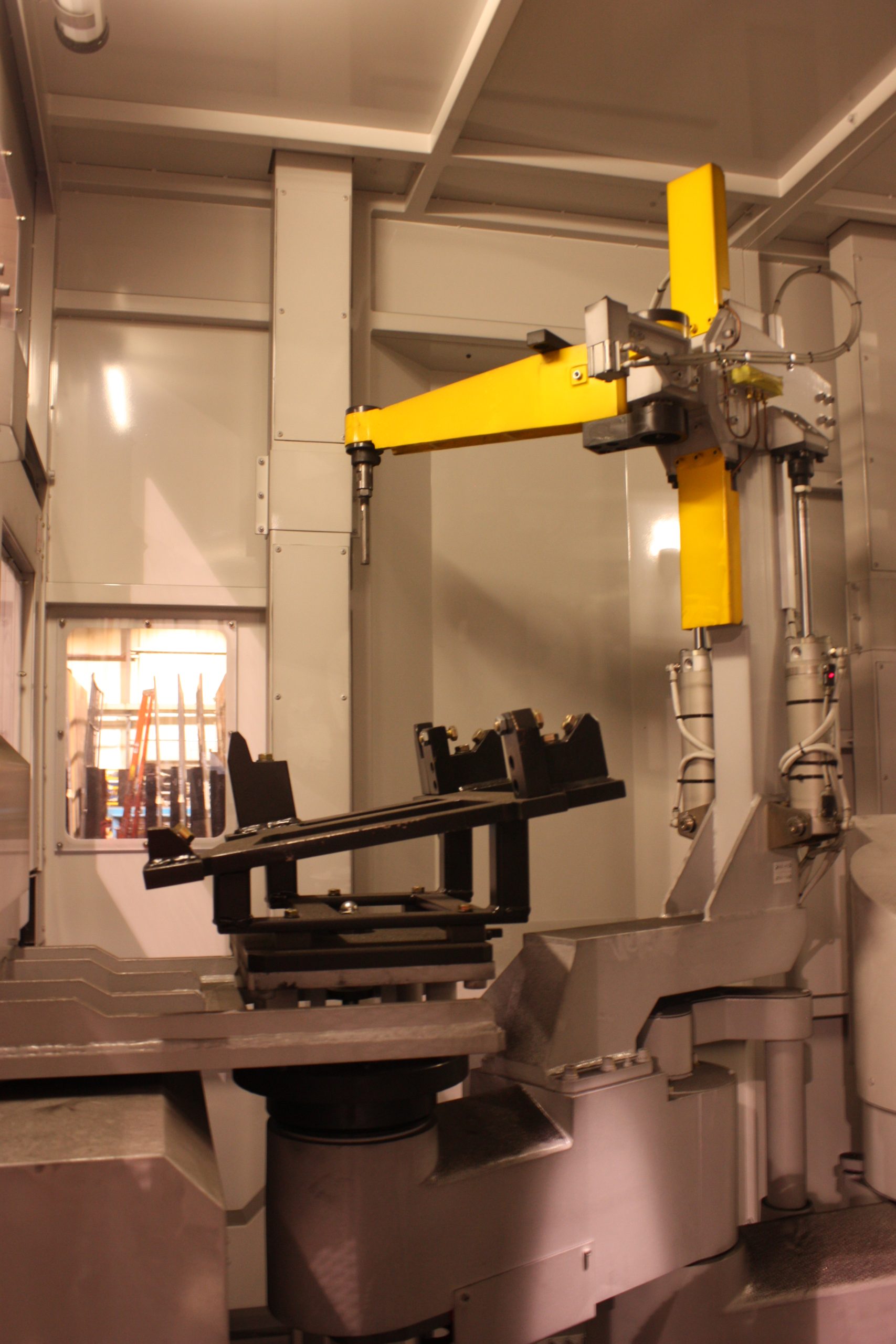

- Quick change out of fixtures, programs & tools (less than 5 minutes)
- Simple & easy programming and operation for maximum uptime. Designed to be intuitive and allows the operator to teach the machine to automatically perform the same operations that would otherwise be performed manually
- 2-Position servo pallet changer

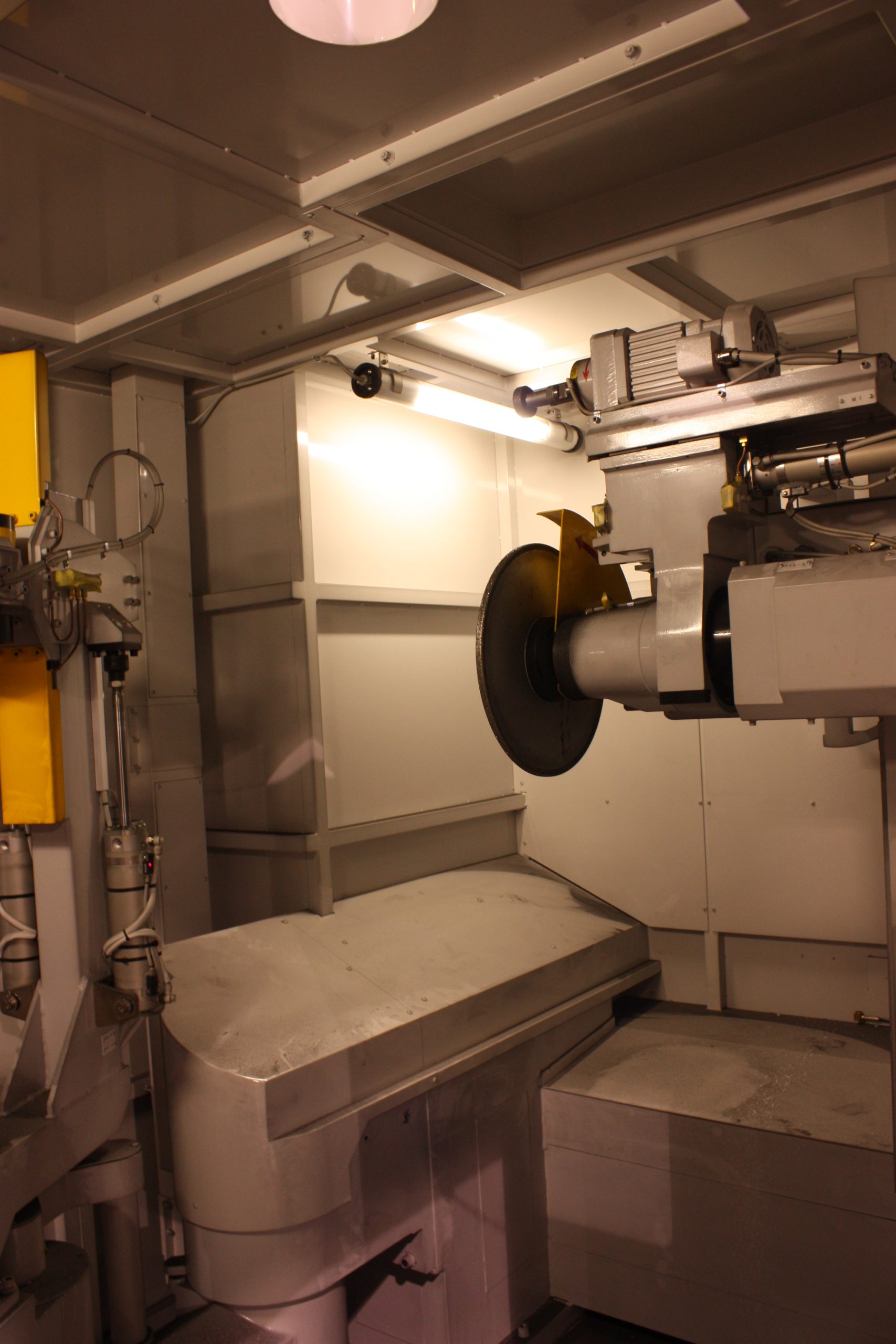

- Rotating main diamond wheel with pivoting small diamond pencil tool
- Long lasting diamond tools save operation costs and dust generation
- High speed and efficient processing enables productivity and a high finishing quality
- OPTIONS: Pencil tools available in various configurations, auto loading and unloading, air cooler
ALUMINUM CAPABILTIES:

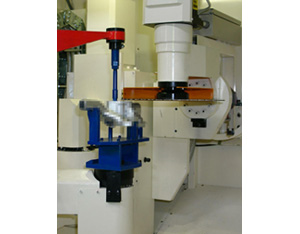

- Automatic cutting machine for gate and parting line flash removal on small to medium size aluminum castings

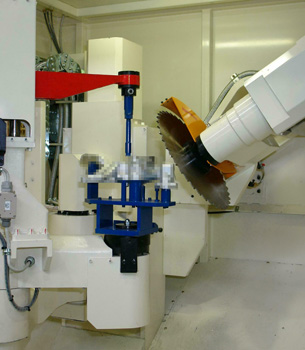

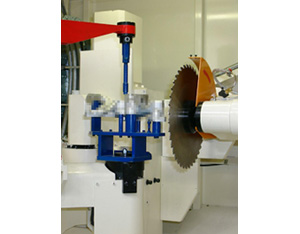

- Rotating main chip saw with pivoting end mill tool
- Long lasting tool saves operation costs and dust generation

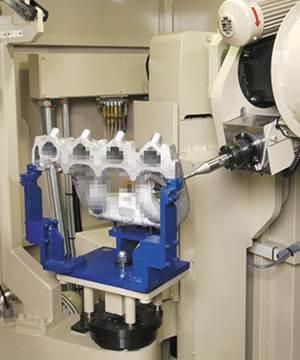

- Key functions: Angled cutting, horizontal cutting, vertical cutting, inside & contour finishing
- OPTIONS: Chip conveyor, mist lubricator for main cutting wheel, floor chute air blow off, auto loading and unloading
We also provide complete robotic load and unload integration and vision systems that can be applied to the BARINDER® Machine to maximize throughput and minimize labor.
Specifications
Gray and Ductile Iron, Brass, Bronze:
| Overall Dimensions | 97.25" x 172.5" x 110.5" (2471 mm x 4382 mm x 2907 mm) |
|---|---|
| Work Envelope | 31.5" dia x 21.5" H (800 mm dia x 550 mm H) |
| Max Total Weight (Part + Fixture and other loading materials) | 330 lbs (150 kg) |
| Standard Main Tool (Other options available) | Diamond wheel, 16" dia. X 0.47" thick (405 mm dia x 12 mm thick) |
| Main Tool Drive Spindle | Operating Torque: 6 hp (4.5 kW) Peak Torque: 25 hp (18.6 kW) |
| Auxillary Grinding Spindle | 2.95 hp (2.2 kw) High-Speed Inverter Drive Optional: 5.5kw Available |
| Grinding Wheel Tilt Motion | 130 degrees |
| Work Load/Unload | 2-position pallet changer |
| Number of Axes | 7 |
| Weight | 11,200 lbs. (5100 kg) |
| Pallet Weight | 38.15 lbs |
| Lower Light Curtains | Allow for max 15" high platform |
Aluminum:
| Work Envelope | 31.5" dia. X 21.5" H (800 mm dia. x 550 mm H) |
|---|---|
| Max Total Weight (Part + Fixture and other loading material) | 330 lbs (150 kg) |
| Standard Main Tool (other options available) | Diamond Chip Saw, 16" dia. X 0.31" thick (405 mm dia x 8 mm thick) |
| Main Tool Drive Spindle | Operating Torque: 6 hp (4.5 kW) Peak Torque: 25 hp (18.6 kW) |
| Auxiliary Grinding Spindle | 2.95 Hp (2.2 kW) High Speed Inverter Drive |
| Grinding Wheel Tilt Motion | 130 degrees |
| Work Load/Unload | 2-position pallet changer |
| Number of Axes | 7 |
| Weight | 11,200 lbs. (5100 kg) |
| Lower Light Curtains | Allow for max 15" high platform |
