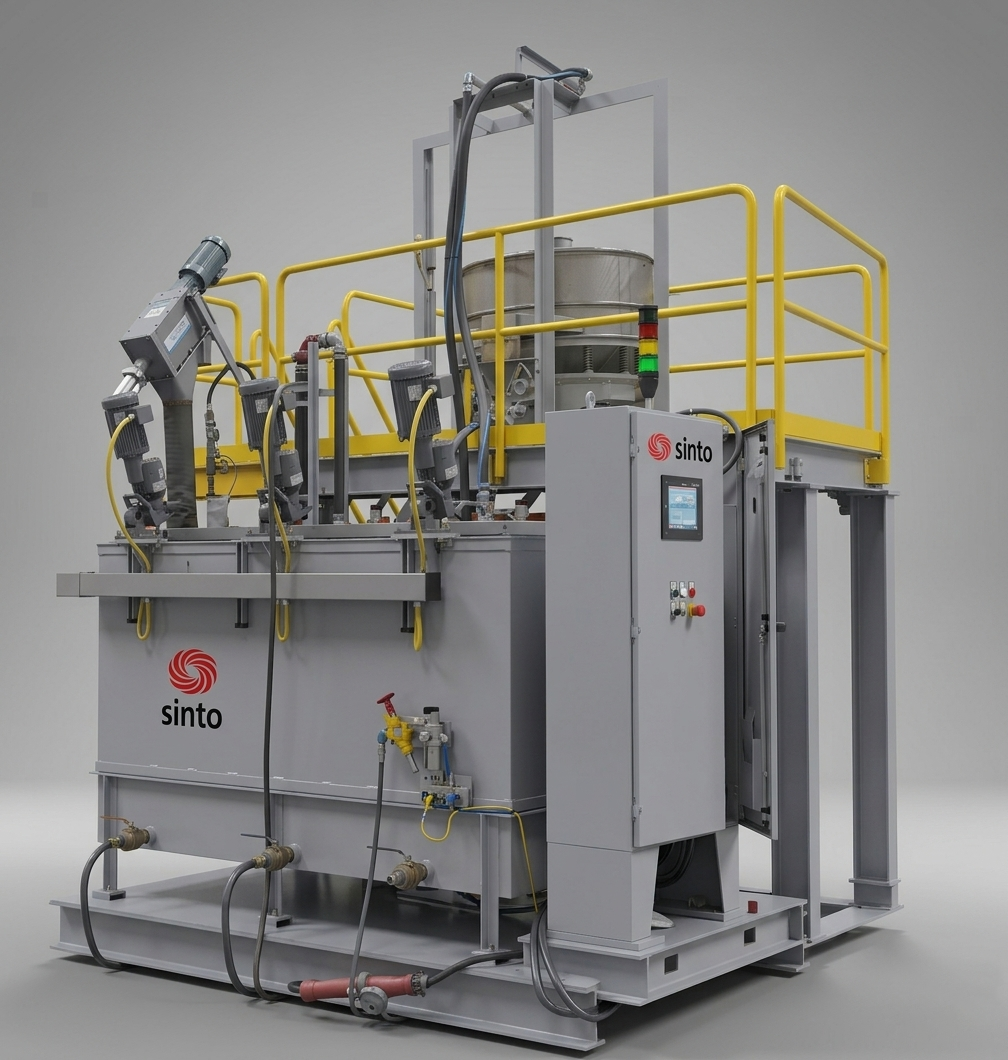

Bentonite Recovery System

Request A Quote

90% Recovery Rate of Active Clay

The BRS-1 will help a foundry elevate your casting quality based on improved green sand properties. Shorter mulling times result in an overall operational efficiency, lower emissions and reduced environmental footprint.

TECHNOLOGY:

  • Over 90% recover rate, process up to 1 ton of dust/hour
  • Reduce bond additions by up to 40%
  • Reintroduction of fully hydrated, activated clay provides efficient green sand property development
  • Reduced variability of green sand properties in sand system
  • Reduced mull times allows for increased mold production
  • Shortened mulling times result in lower energy costs and reducing wear and tear on mulling equipment
  • Recycling green sand baghouse dust cuts landfill use and disposal costs
  • Easily integrated and compact machine design
  • Chemical free
  • Lower foundry emissions
  • Environmental sustainability
  • Fully automated system

BENEFITS:

  • Bentonite cost savings: reduction in bentonite usage, water material reduction, landfill and transportation costs
  • Part quality improvement: use of prepared clay, ease of mixing, improved bonding performance, decreased sand variability
  • Reduction of environmental impact: waste reduction, dust disposal, landfill use, no chemicals required, recycling of bentonite
  • Reduction in bond consumption: reintroducing recycled bond slurry into the muller reduces dry bond usage by up to 40%
  • Reduction in cycle time: pretreated bentonite reduces clay mixing time in the sand system
  • Reduction in water usage: pretreated bentonite slurry reduces water needed for clay activation

“Grede-St. Cloud was looking for a method to save bond, improve green sand properties and increase mold rates. The Bentonite Recovery System delivered on these metrics.” -John Haas, Cast-Met Associates, LLC

FEATURES:

  • Patented process for clay separation
  • Minimal replacement parts required
  • Compact design
  • Stainless steel construction
  • Industry proven pump design
  • Customizable for your foundry application

SINTO SMART FOUNDRY® INTEGRATION:

  • Live Data Display
  • Display Flow Rates
  • Calculate Product Consumption Real-Time
  • Historical Records and Traceability
  • Statistical Process Control
  • Calculate KPIs for Process and ROI
  • Fault and Message Recording

Specifications

BRS drawing new BRS drawing new

DIMENSIONS

ModelBRS-1
Length152 1/16"
Width145 9/16"
Height161 15/16"
Dust Processing Rating1 ton/hour
Slurry Production Rating550 gal/hour
Supply Voltage460 VAC
Water Supply Min.10 gal/min
