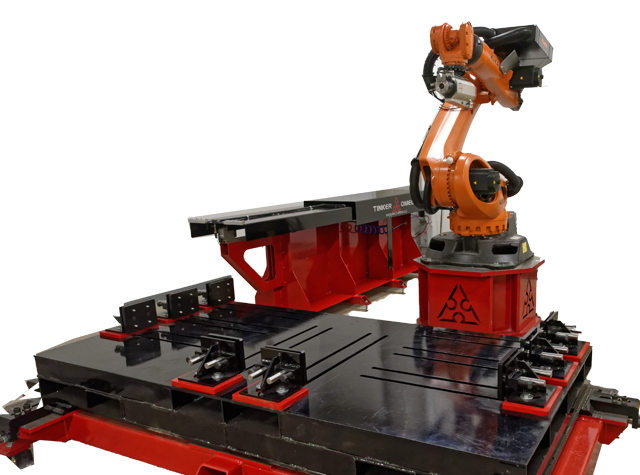

RSM Robotic Sand Milling
FEATURES:
- 6-AXIS ROBOT: 2.9 meter reach, 120kg payload, Accuracy of +/- 0.0015″ (0.04mm), 10 kW, 24000 RPM spindle
- HYDRAULIC TILTING MOLD TABLE: Standard capacity 2m x 2m x 2m, Adjustable mold clamps, Efficient loading and unloading
- AUTO TOOL CHANGE STATION: Up to 16 tool capacity, Fully hands-off operation, Integrated pneumatic nozzle cleaning system
- CELL CONTORL PACKAGE: 24″ touchscreen, Proprietary software, Hands off milling, Powered by B&R Industrial PC
OPTIONS:

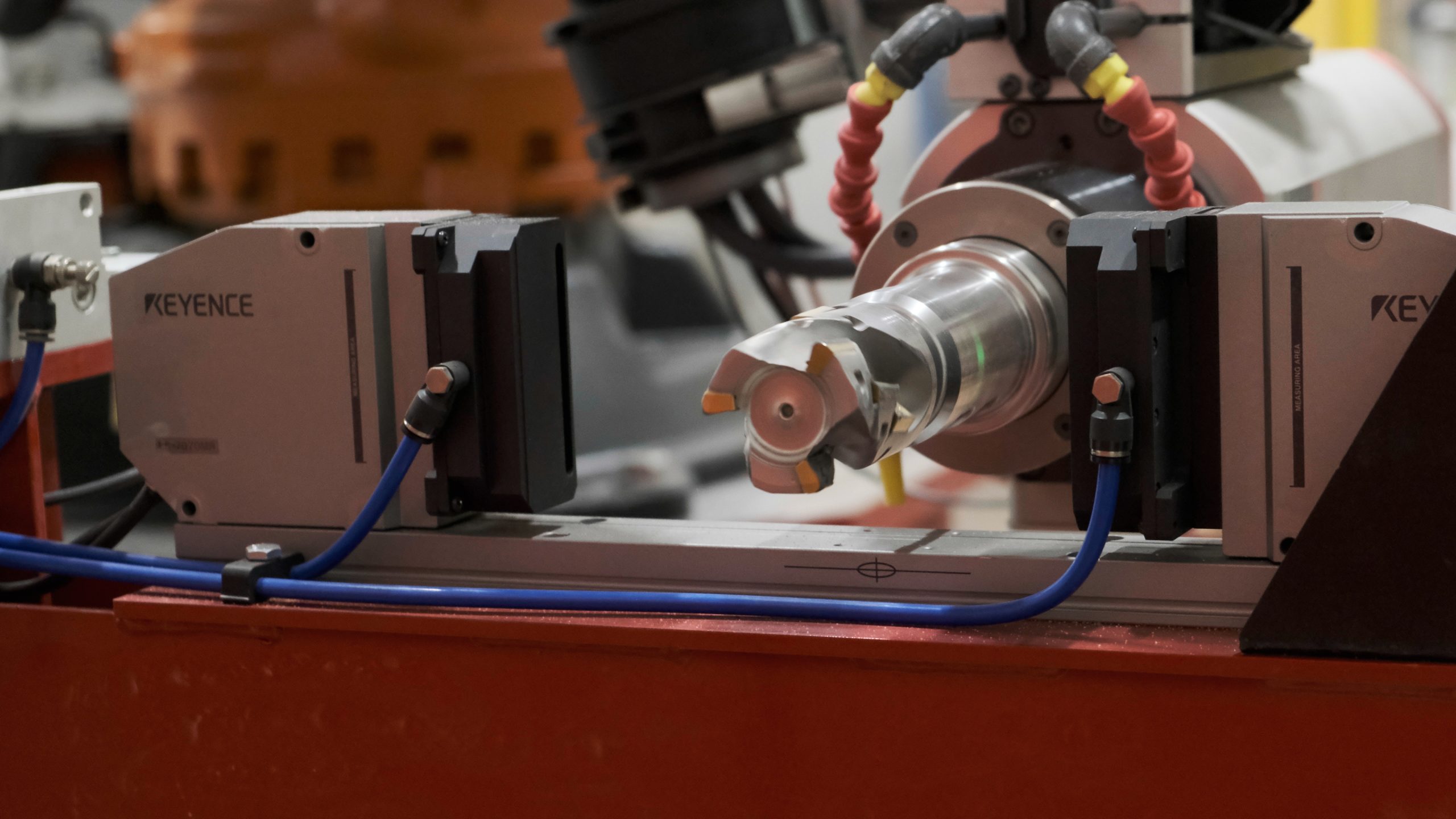

- Tool Inspection Station

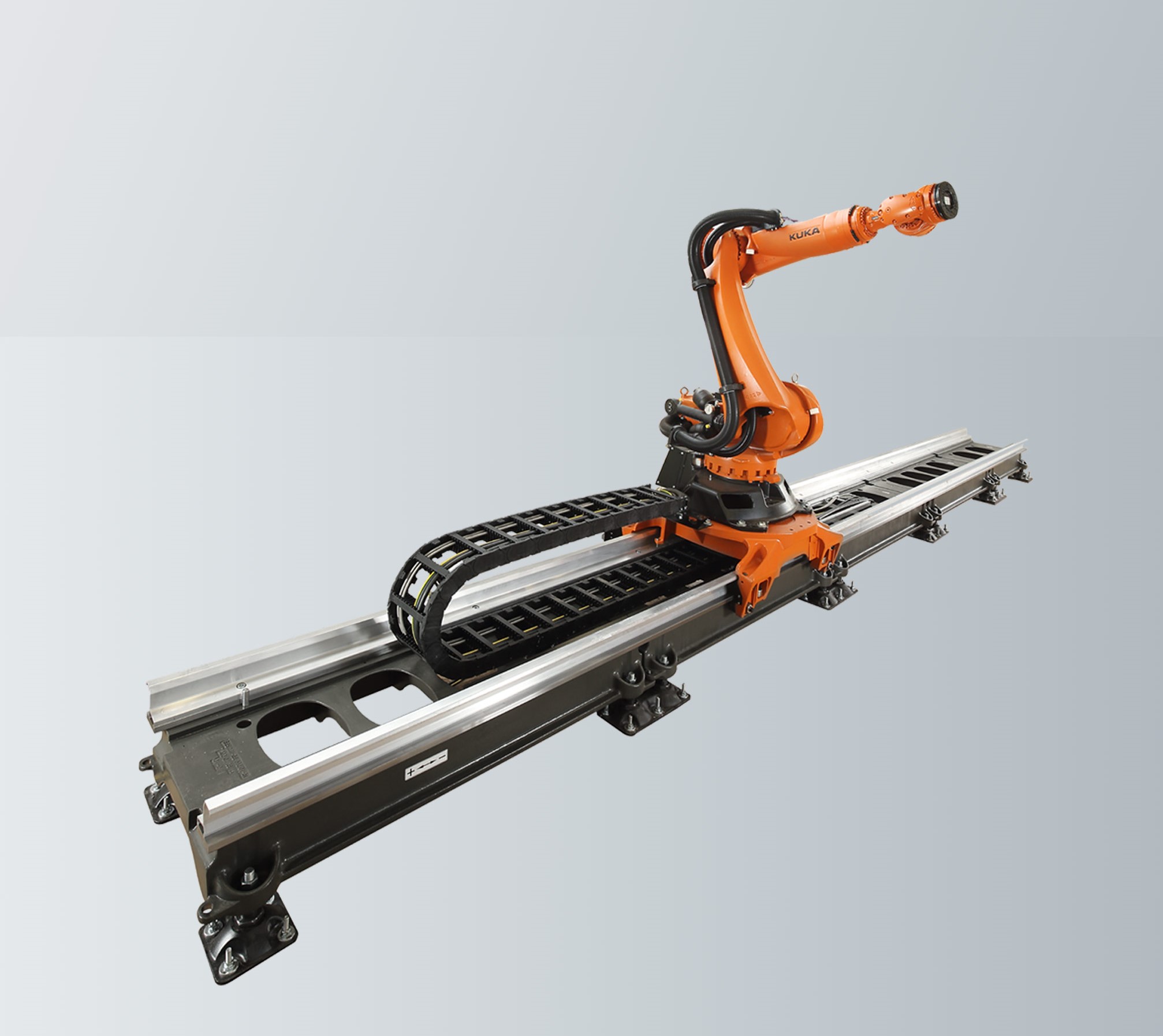

- 7th Axis Gantry
Request More Info
Robotic Sand Milling
| Size | Dust Ex | Power |
|---|---|---|
| 1 TPH | 883 scfm (1,500 m3/hr) | 10.9 HP (8.2 kW) |
| 5 TPH | 1766 scfm (3,000 m3/hr) | 11.1 HP (8.25 kW) |
| 10 TPH | 2825 scfm (4,800 m3/hr) | 20.8 HP (15.50 kW) |
