Non Oxides

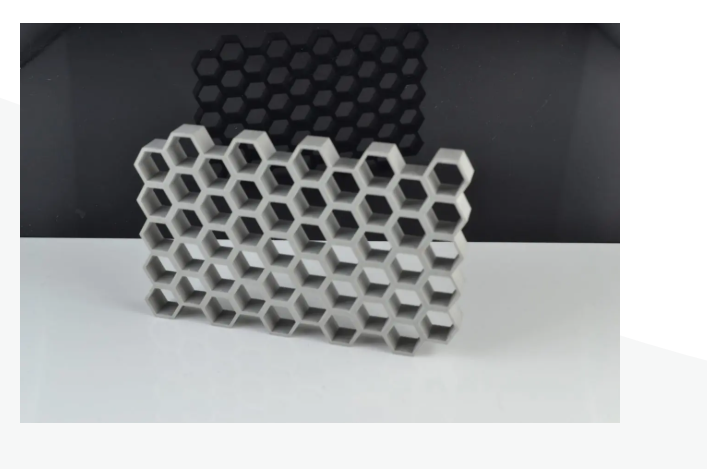

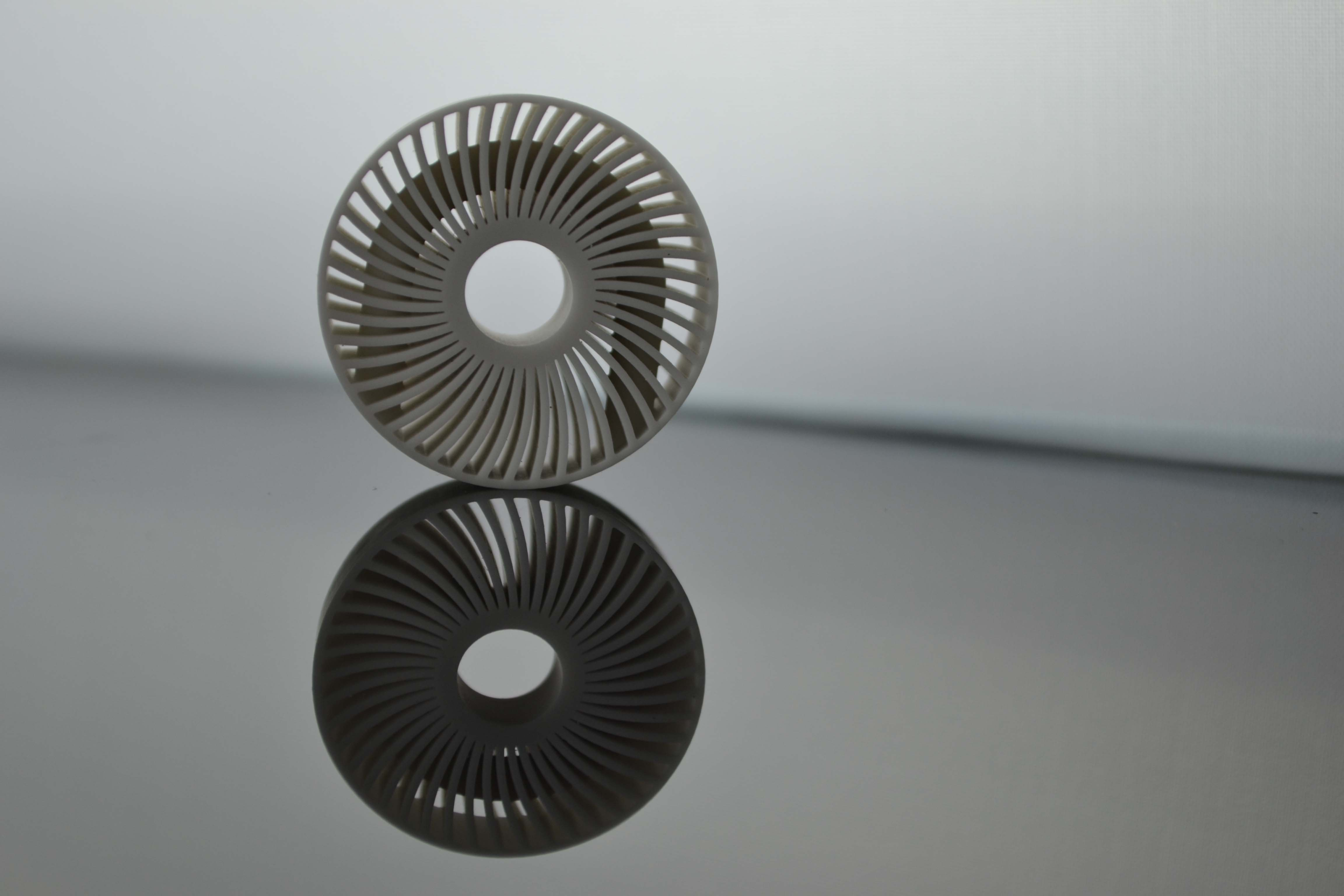

Non-oxides can be used for several special applications including using Aluminum Nitride for its high thermal conductivity on a propulsion system, or for the high temperature and hardness of Si3N4 with light weight for thermal protection. Let us know how Sinto Advance Ceramics can integrate printed ceramics into your application and help you achieve your goals.
Applications:
- Aluminum Nitride
- Silicon Nitride
- TPS sub structure
- Heat Sinks
- Exoskeleton
- Armor
- Heat Dissipation
Specs
| C101 | C900 | Form 4 | |
|---|---|---|---|
| Material (all layer heights in µm) | |||
| Alumina | 50 / 100 | 100 | 50 |
| 3Y Zirconia | 50 / 100 | -- | 50¹ |
| 5Y | 50 / 100 | -- | -- |
| 8Y | 50 / 100 | -- | -- |
| Silica Core Material | 50 / 100 | -- | 50¹ |
| Aluminum Nitride | 50² | -- | -- |
| Silicon Nitride | 50² | -- | -- |
| Specs | |||
| Printer Volume³ | 100 x 100 x 150 mm | 300 x 300 x 100 mm | 200 x 125 x 210 mm |
| Printer Accuracy | ± 50 µm | ± 50 µm | ± 75 µm |
| Smallest Negative Feature | 500 µm | 500 µm | 600 µm |
| Smallest Positive Feature | 200 µm | 200 µm | 400 µm |
| Maximum Wall Thickness | 6 mm | 6 mm | 6 mm |
¹In development, coming soon
²Firing of nitrides is not currently available in the US and will need to be done at a different site. We expect this capability by early 2027 in the US.
³Keep in mind that all printer volumes are for the raw printer volume – parts typically shrink by 20-30%, so 100 mm may only be ~82 mm of sintered part
Materials
- Alumina (low purity – 97%)
- Alumina (high purity – 99.99%)
- 3Y Zirconia
- 5Y Zirconia
- Investment Casting Silica
- Alumina Toughened Zirconia (ATZ)
- Zirconia Toughened Alumina (ZTA)
