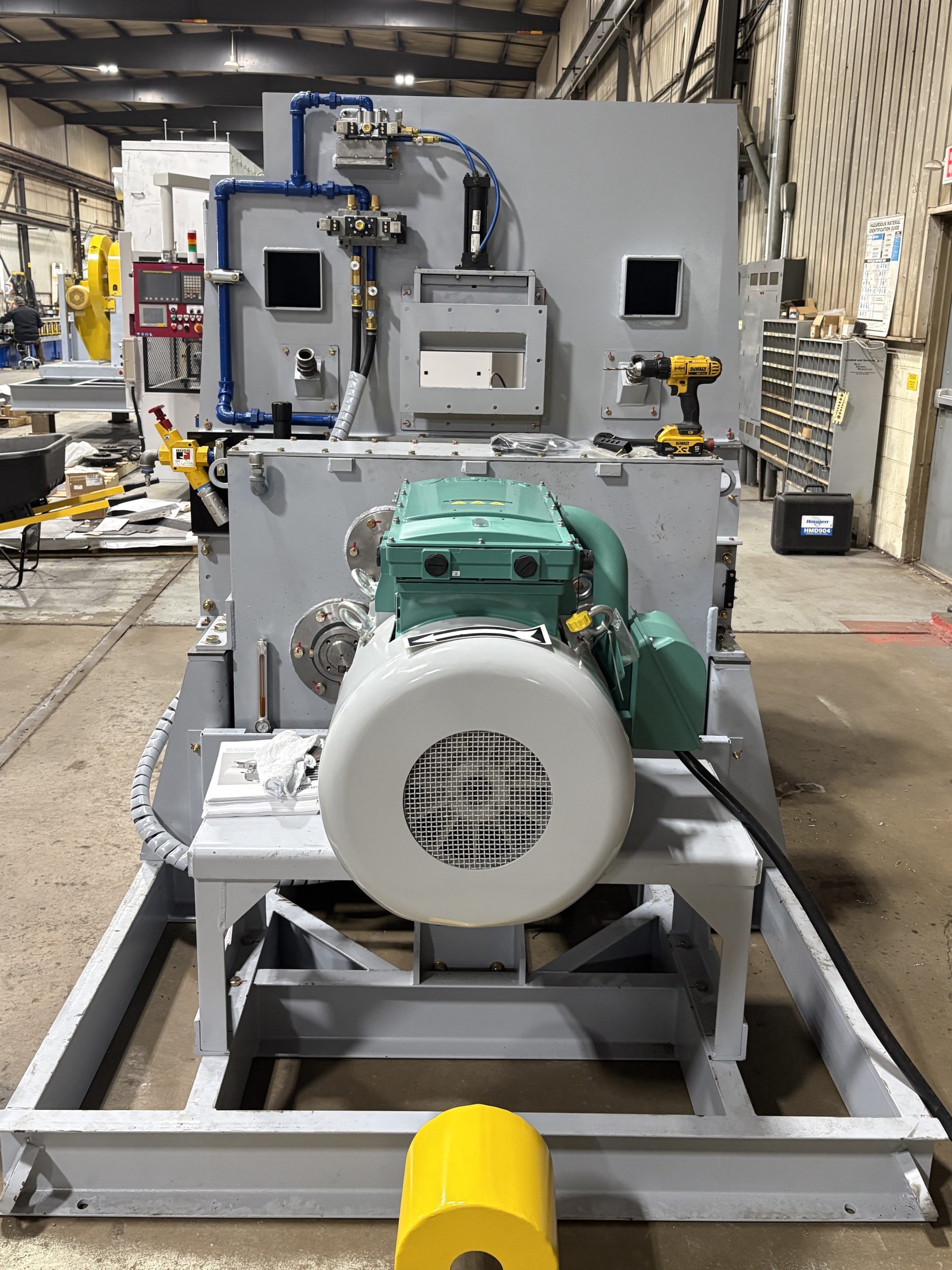

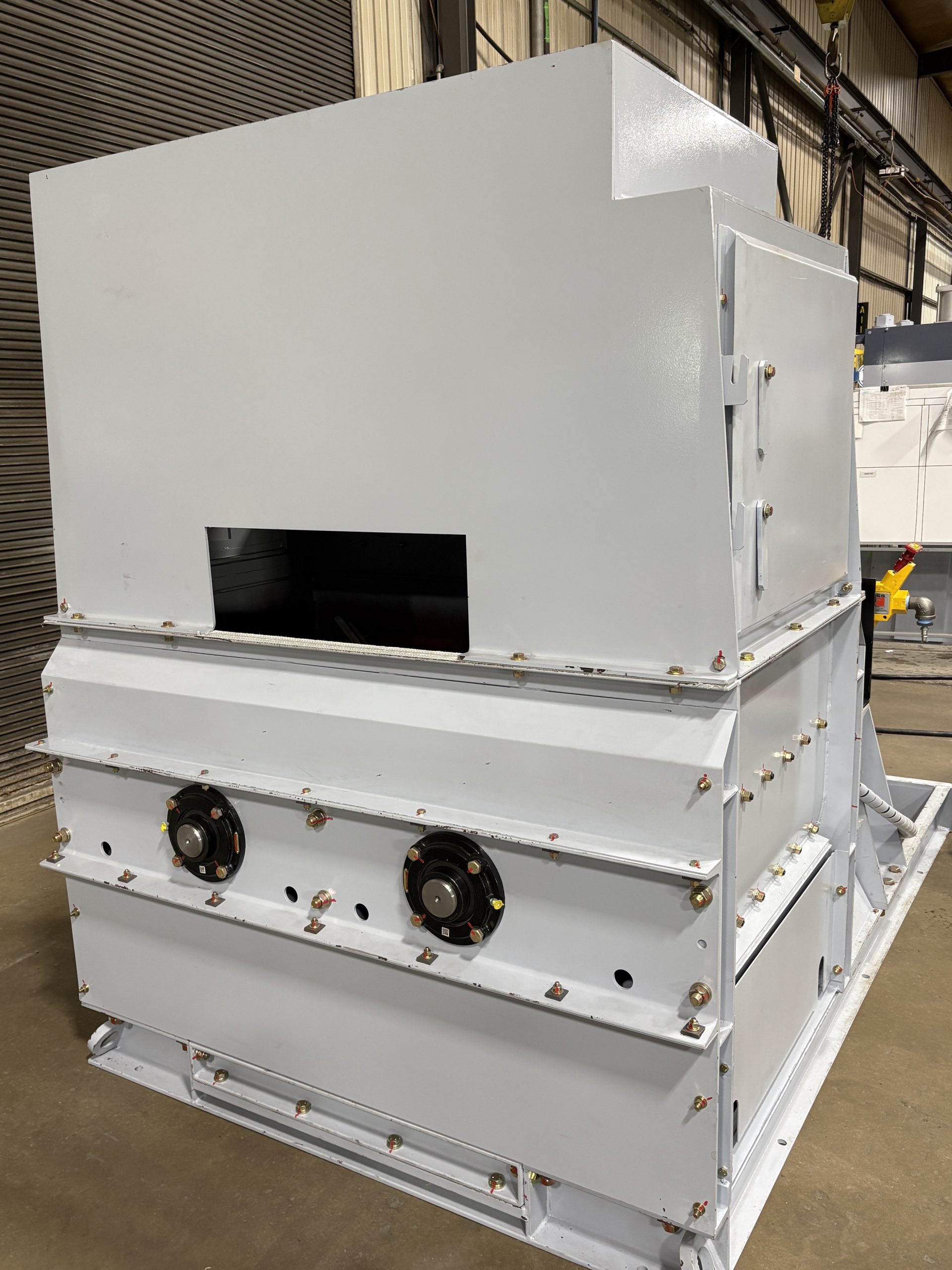

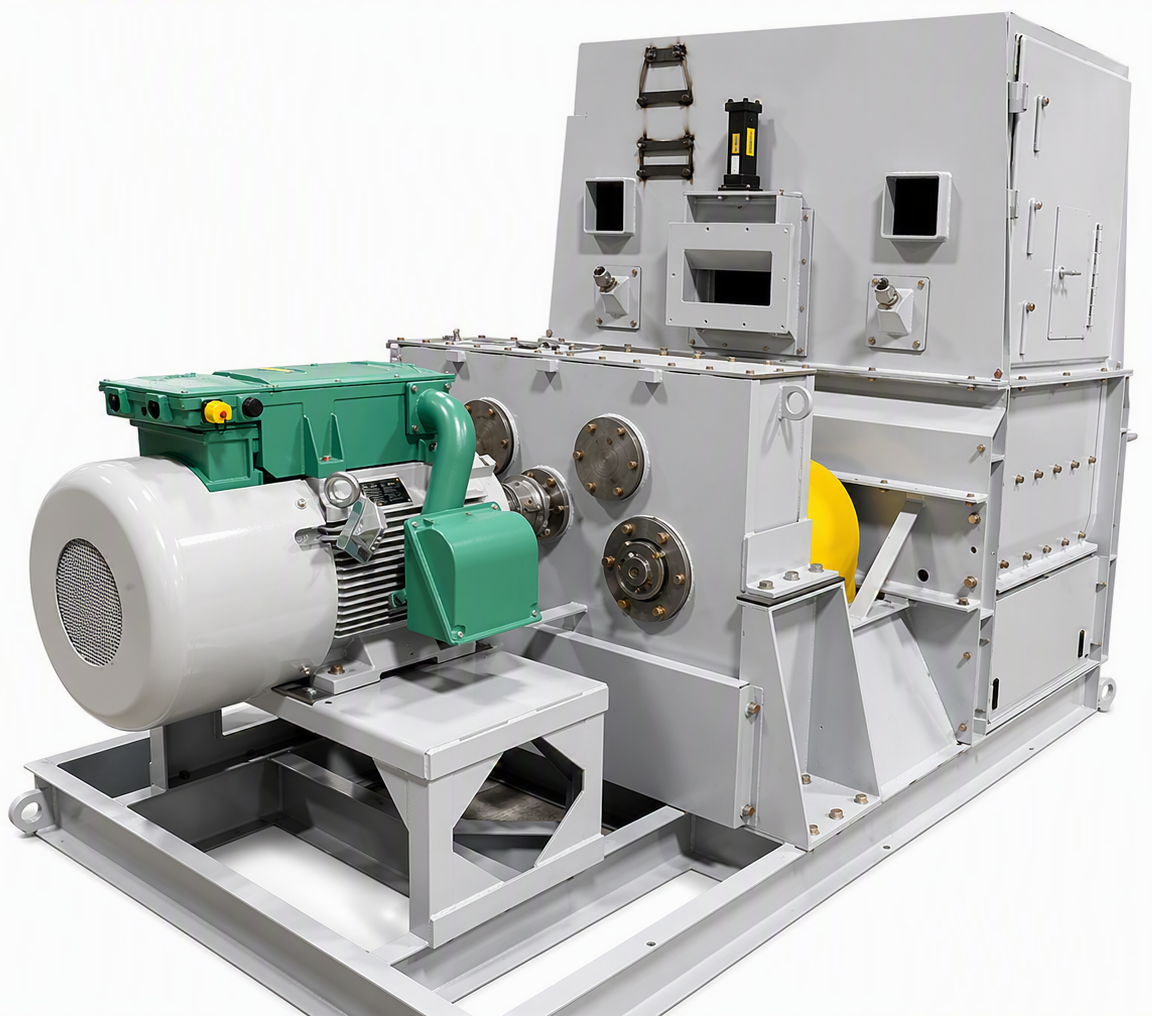

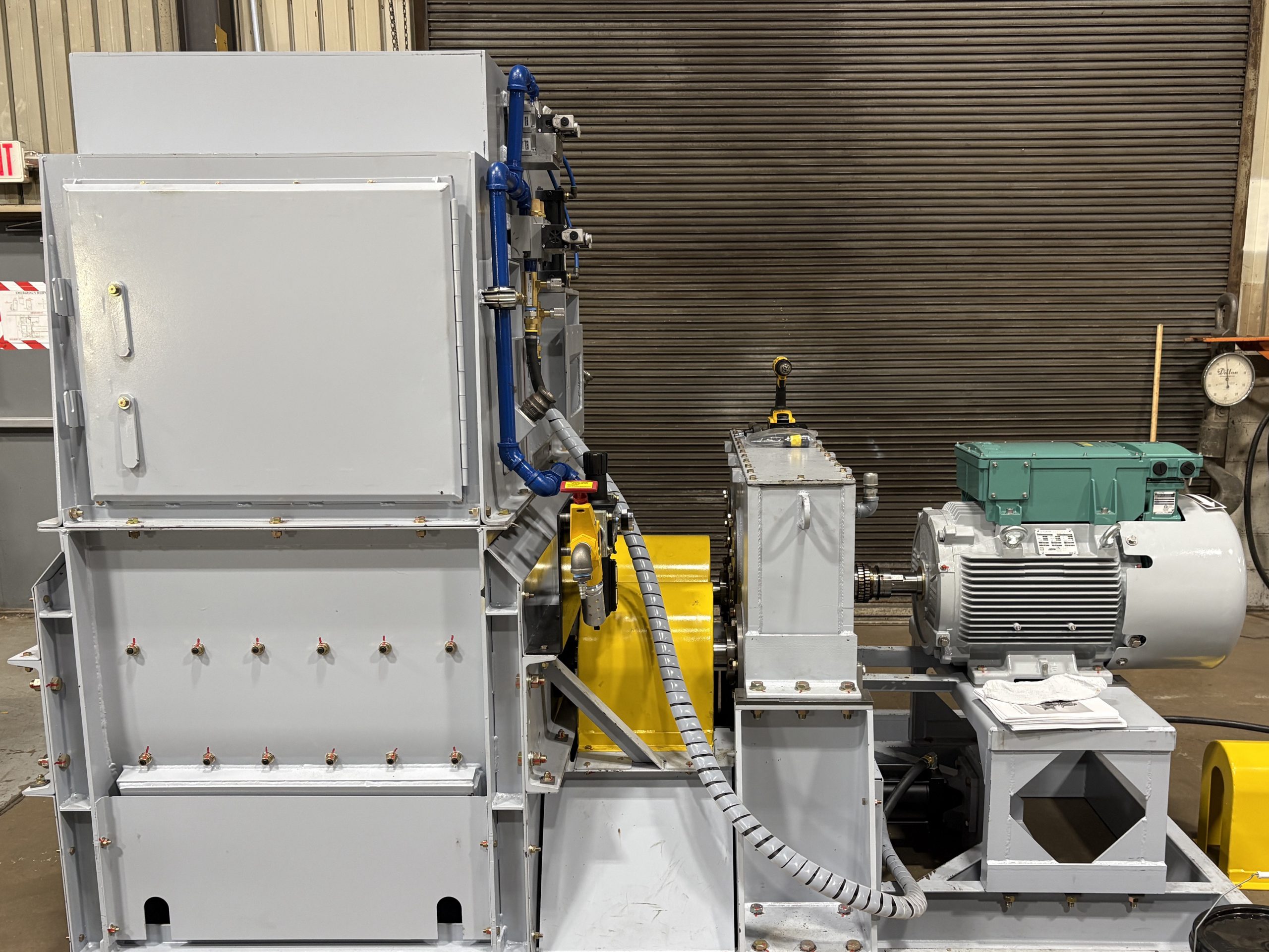

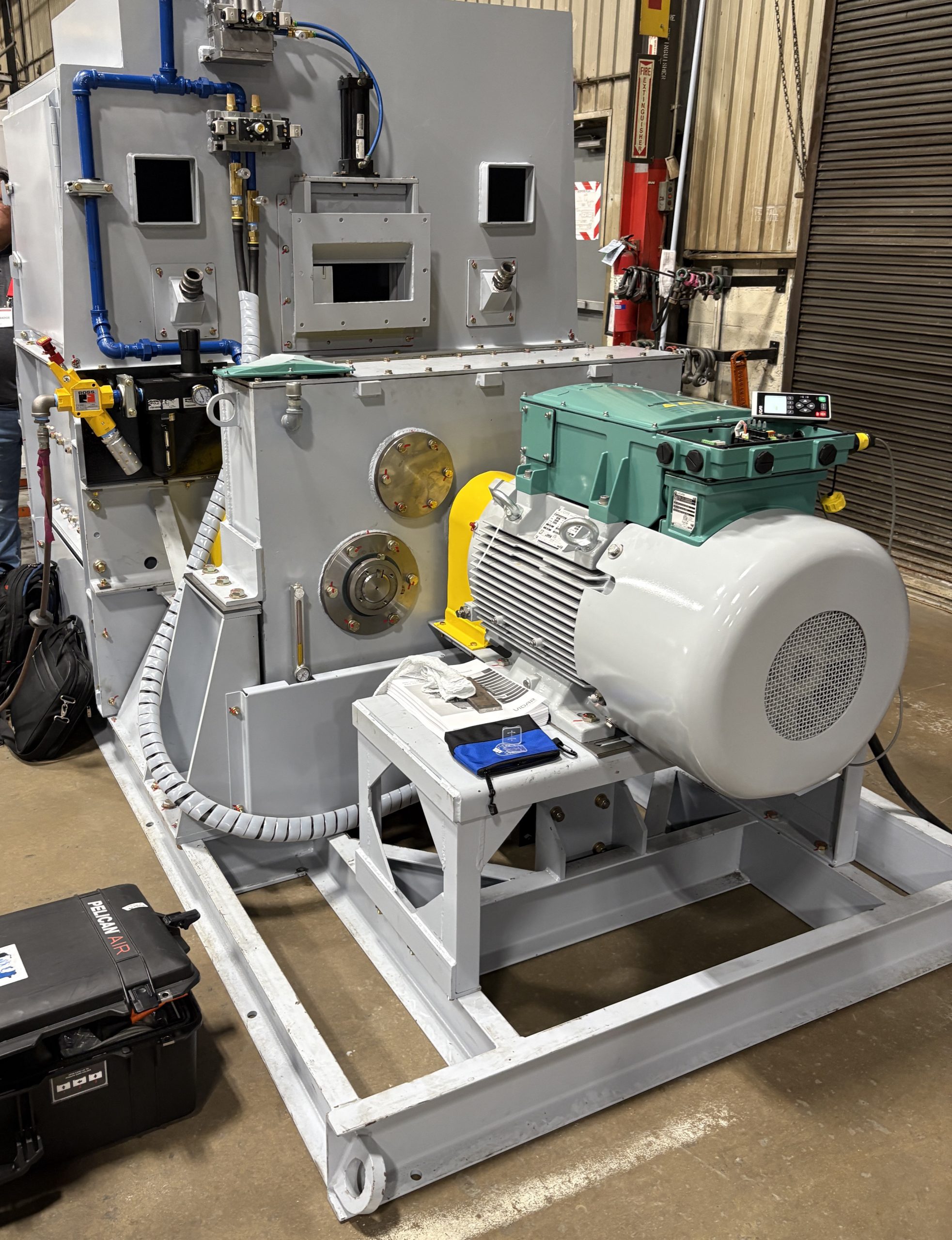

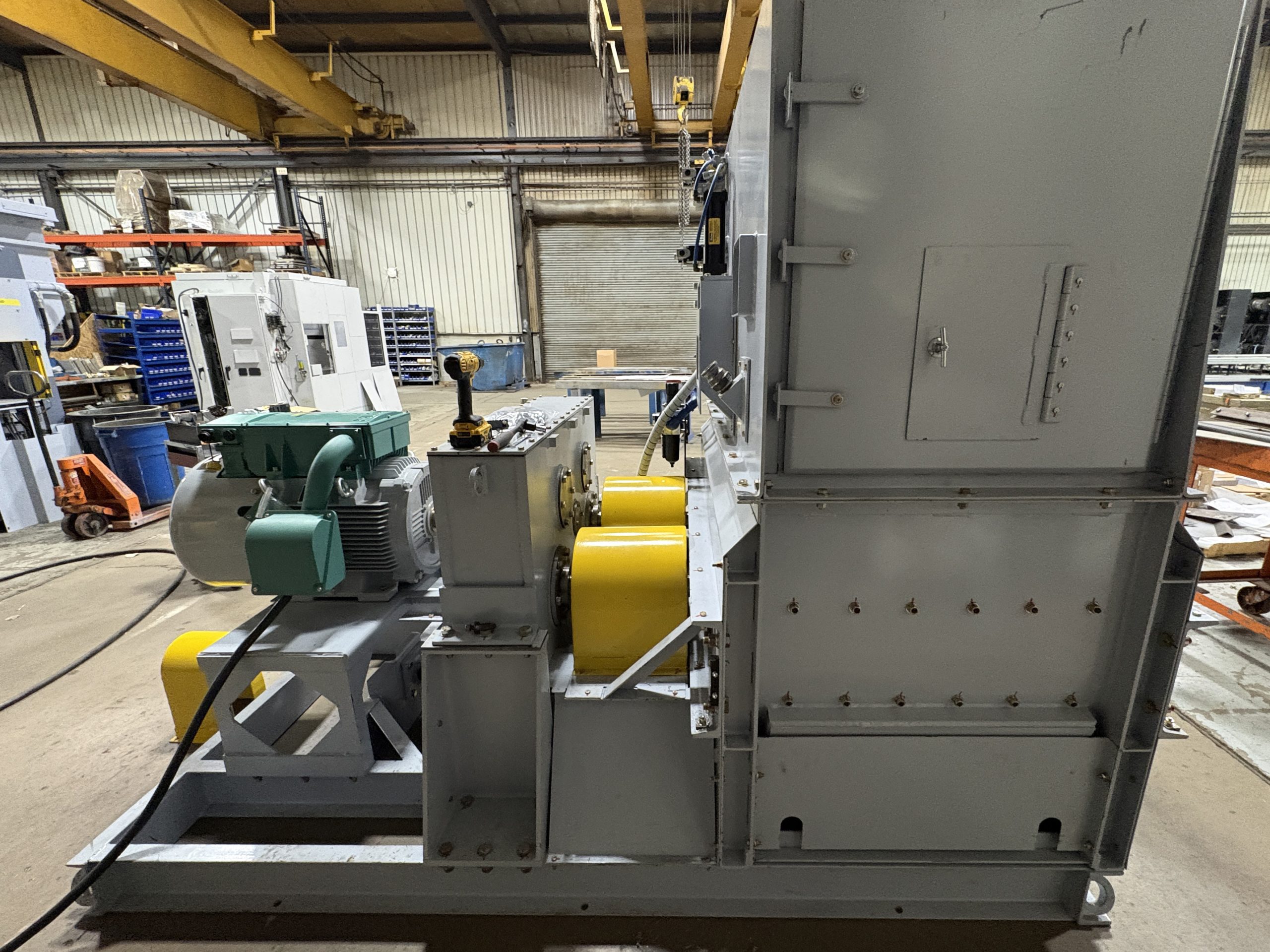

Batch Mixer
IB-Series Batch Mixer is ideal for wide range of processing applications including mixing, agitating, feeding, blending and coating.
FEATURES:
- Mixing chamber is jacketed for heating or cooling to maintain chamber surfaces at desired level
- Liners are easily replaceable, sectional type 1/2” thick cast Ni-hard steel
- Paddles are adjustable, reversible and replaceable
- Roller-type gate seal is adjustable to keep completely sealed while allowing parts to be easily accessible for servicing
- Extra large, air-operated discharge gate assures rapid, thorough discharge (Hydraulic-operated on IB-75 model)
Specifications
| Plant Batch Size | Model | Paddle Arms per shaft | Weight |
|---|---|---|---|
| 400 LBS (180 KG) | IB-11 | 6 | 3900 lbs (1800 kg) |
| 800 LBS (350 KG) | IB-22 | 3 | 6500 lbs (2900 kg) |
| 1200 LBS (500 KG) | IB-33 | 4 | 7900 lbs (3600 kg) |
| 2500 LBS (1100 KG) | IB-75 | 4 | 20,000 lbs ( 9100 kg) |
Options
- – Interchangeable end doors
- – Several batch sizes/rates available
- – Automatic tip-in hoppers (400 lbs. plants only)
