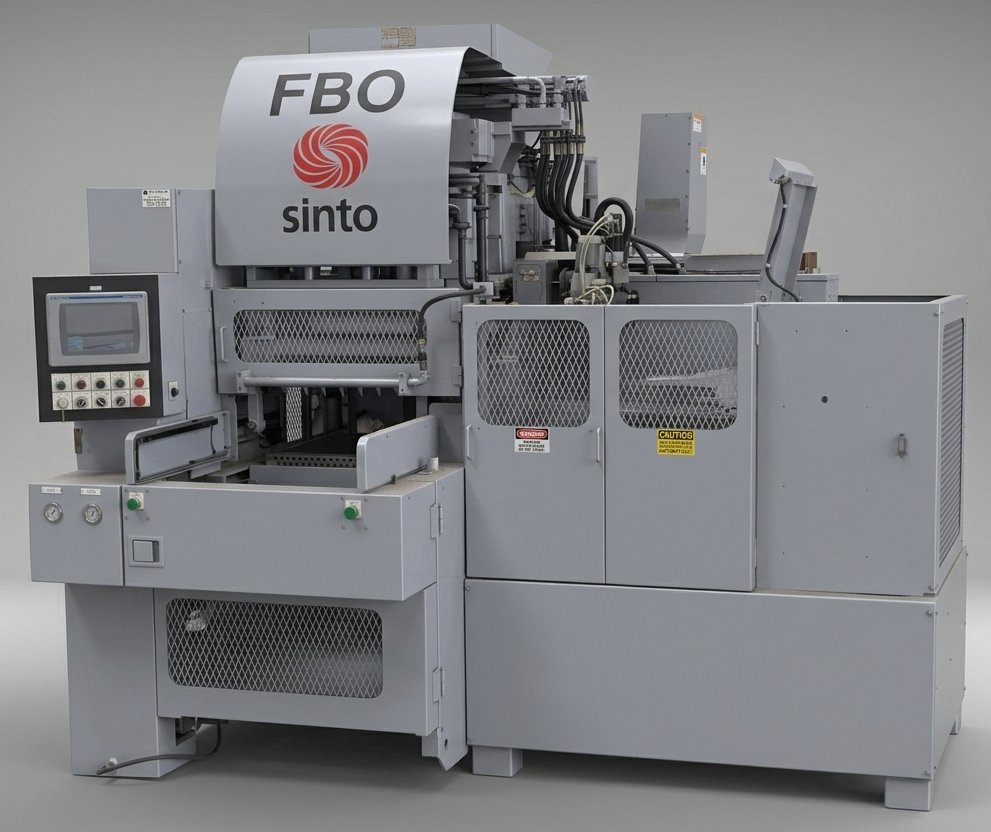

FBO Flaskless Molding Machine
The FBO Flaskless Molding Machine offers a wide variety of mold dimensions to the foundry industry. The FBO line of molding machines are widely used in the foundry industry. The robust design provides the confidence and longevity that a foundry expects in a molding machine. The design of the FBO molding machine has safeguards against the shifting of molds. Another key feature that the FBO has is ability to vary the molding height, which effectively adapts the mold size to the to various pattern profiles. The variable mold height also allows for the efficient use of sand. The various design features in the FBO Flaskless Molding machines can be a vital tool tin reducing scrap in a foundry.
FBO FLASKLESS MOLDING MACHINE FEATURES:
- Single station design; Compact size
- Horizontal Parting
- Wide variety of mold dimensions
- Average max mold rate of 130 molds/hour
- Virtually No Spill Sand or Strike-off Sand
- No Pits
- No Bottom Boards required
- Mold To Mold Consistency
- Maintenance Friendly
- Programmable Hydraulic Squeeze
- Quick Pattern Change Features
- Left Hand or Right Hand models available
- Automatic drag shuttle mechanism for safe, comfortable, and easy core setting
OPTIONS: Aeration, chaplet set safety light curtain, pattern heater & vibrator, central lube, Sinto foundry analytics, remote connectivity, air cooled hydraulics, non-standard pattern heights, pattern plate adapters
Specifications
FBO Flaskless Molding Machines
| Model | Mold Size | Mold Height from (Cope) | Mold Height to (Drag) | Average Maximum Mold Rate (without Core setting) | Molding System |
|---|---|---|---|---|---|
| FBO-II | 14" x 19" (356 mm x 483 mm) | 5" - 8" (130 mm - 200 mm) | 5" - 8" (130 mm - 200 mm) | 130 molds/hour (28 seconds/mold) | Edge Blow + Squeeze (Aeration Filling available) |
| 16" x 20" (406 mm x 508 mm) | 5" - 8" (130 mm - 200 mm) | 5" - 8" (130 mm - 200 mm) | 130 molds/hour (28 seconds/mold) | Edge Blow + Squeeze (Aeration Filling available) |
|
| FBO-II S | 14" x 19" (356 mm x 483 mm) | 5" - 8" (130 mm - 200 mm) | 5" - 8" (130 mm - 200 mm) | 150 molds/hour (24 seconds/mold) | Edge Blow + Squeeze (Aeration Filling available) |
| 16" x 20" (406 mm x 508 mm) | 5" - 8" (130 mm - 200 mm) | 5" - 8" (130 mm - 200 mm) | 150 molds/hour (24 seconds/mold) | Edge Blow + Squeeze (Aeration Filling available) |
|
| FBO-IIIA | 20" x 24" (508 mm x 609.6 mm) | 5" - 8" (130 mm - 200 mm) | 5" - 8" (130 mm - 200 mm) | 120 molds/hour (30 seconds/mold) | Edge Blow + Squeeze (Aeration Filling available) |
| 20" x 26" (508 mm x 660.4 mm) | 5" - 8" (130 mm - 200 mm) | 5" - 8" (130 mm - 200 mm) | 120 molds/hour (30 seconds/mold) | Edge Blow + Squeeze (Aeration Filling available) |
|
| FBO-III B | 20" x 26" (508 mm x 660.4 mm) | 7" - 10" (180 mm - 254 mm) | 7" - 10" (180 mm - 254 mm) | 120 molds/hour (30 seconds/mold) | Edge Blow + Squeeze (Aeration Filling available) |
| FBO-III S | 20" x 24" (508 mm x 609.6 mm) | 5" - 8" (130 mm - 200 mm) | 5" - 8" (130 mm - 200 mm) | 150 molds/hour (24 seconds/mold) | Edge Blow + Squeeze (Aeration Filling available) |
| 20" X 26" (508 mm x 660.4 mm) | 5" - 8" (130 mm - 200 mm) | 5" - 8" (130 mm - 200 mm) | 150 molds/hour (24 seconds/mold) | Edge Blow + Squeeze (Aeration Filling available) |
|
| FBO-IV | 20" X 28" (508 mm x 711.2 mm) | 7" - 10" (180 mm - 254 mm) | 7" - 10" (180 mm - 254 mm) | 100 molds/hour (36 seconds/mold) | Edge Blow + Squeeze |
| 24" X 28" (609.6 mm x 711.2 mm) | 7" - 10" (180 mm - 254 mm) | 7" - 10" (180 mm - 254 mm) | 100 molds/hour (36 seconds/mold) | Edge Blow + Squeeze | |
| FBO-V | 24" X 30" (609,6 mm x 762 mm) | 9" (230 mm) | 12" (300 mm) | 90 molds/hour (40 seconds/mold) | Edge Blow + Squeeze |
| 30" X 32" (762 mm x 812.8 mm) | 9" (230 mm) | 12" (300 mm) | 90 molds/hour (40 seconds/mold) | Edge Blow + Squeeze | |
| 32" x 32" (812.8 mm x 821.8 mm) | 11" (280 mm) | 14" (355 mm) | 80 molds/hour (45 seconds/mold) | Edge Blow + Squeeze |
Options
- – Aeration Sand Filling Models available
- – Chaplet Set Safety Light Curtain
- – Pattern Heater & Vibrator
- – Central Lube
- – Sinto Foundry Analytics
- – Remote Connectivity
- – Air Cooled Hydraulics
- – Non-standard Pattern Heights
- – Pattern Plate Adapters
- – Mold Blow-Off
- – Automatic Core Setter
Videos
FBO-II Flaskless Molding Machine
Sinto’s Molding Machine Lineup
G&W Electric FBO-IIIS Mold Handling Line: Engineering, Manufacturing and Installation
Pier Foundry and Sinto America: Forging a Partnership into the Future
Sinto and H&H Castings, Foundry Partners in Automation
Sinto Completes Turn-Key FBO-IIIS & Mold Handling System for Maclean Power
FBO-IIIS Flaskless, Molding Machine and Dual Mold / Car Mold Handling Line for Talladega Pattern and Aluminum Works:
Cast Products Testimonial on Sinto Flaskless and Mold Handling Line
H&H Casting’s FBO-V Flaskless Molding Machine and Mold Handling Line
Case Studies and Testimonials
Click on the links below to see recent FBO Molding Machine projects.
Manufacturer’s Brass and Aluminum Foundry, a division of G&W Electric Co.– FBO-III 20×24 molding machine, mold handling system and Sinto Smart Foundry integration
Maclean Power Systems– FBO-IIIS molding machine, mold handling system and Sinto Smart Foundry integration
Pier Foundry– FBO-IIIS molding machine, mold handling system and Sinto Smart Foundry integration
Talladega Pattern and Aluminum Works– FBO-IIIS molding machine & dual mold per car mold handling line
Cast Products, Inc.– FBO-IIIS molding machine and mold handling system
H&H Castings– FBO-V molding machine, mold handling system, Sinto Smart Foundry integration and sand handling equipment
Manitowoc Grey Iron Foundry– FBO-II Molding Machine
AMC Foundry– FBO-II and FBO-III Molding Machine
Franklin Iron Works– FBO-IIIS and Mold Handling System
Request More Info
Please fill out the form below if you would like to be sent more information
