BARINDER® Auto Grinding Machines

The BARINDER® grinder is revolutionizing the cleaning room with the most efficient auto deburring, grinding and cutting capabilities for iron, brass, bronze and aluminum castings with different machines to match every application. Sinto offers a wide line up of barinder grinders for all your foundry needs. If you are looking for an easy machine to learn and operate- look no further. Sinto's auto grinding machines are designed to quickly allow operators, with no CNC programming experience, to teach the machine and to automatically perform tasks that would otherwise be done manually. It is possible for only 1 person to be operating several machines- producing significant savings in labor costs through enhanced grinding productivity. Watch the BARINDER® Automatic Grinding Video!

Learn more about Sinto’s training program for the BARINDER® and fixture training!
We also provide complete robotic load and unload integration and vision systems that can be applied to the BARINDER® Machine to maximize throughput and minimize labor. For more information, go to: Automatic BARINDER® Loading & Unloading

Product Description Alloy Work Envelope Max Part Weight

N7i-­CDH22R­-5’8HFMR­-C

Automatic cutting machine for gate and parting line flash removal on medium to large size aluminum castings Aluminum 31.5" dia. x 21.5" H 330 lbs. (150 kg)

N7i-FDH22R-5’8HFGR-C

Automatic grinding-deburring machine ideal for medium to large size castings Gray and Ductile Iron, Brass, Bronze 31.5" dia. x 21.5" H 330 lbs. (150 kg)

N8i-FDH22R-512H20GR-C

Automatic grinding machine for medium and large castings Aluminum, copper alloys (brass/bronze) or gray ductile iron/steel 47.25" L (1200mm) x 11.81" W (300mm) x 21.65" H (550mm) 330 lbs (150kg)

N8i-FDH22R-512HFGR-C

Automatic cutting machine for gate and parting line flash, removal on medium to large size aluminum castings Copper Alloys (Brass/Bronze) 47.25" L (1200mm) x 11.81" W (300mm) x 21.65" H (550mm) 300 lbs.

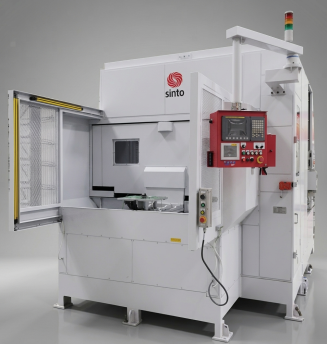

N8i-FDH30R-5’14H32GR-C10

Automatic finishing machine for gate and parting line flash removal on medium to large size castings for aluminum castings Aluminum Castings 39.37" x 39.37" x 29.53" 717

N8i-FDH30R-5’14HF32R-C10

Automatic grinding-deburring machine for medium to large size castings Gray and Ductile Iron, Brass, Bronze 39.37" x 39.37" x 29.53" 717 lbs

X6i-­CDH22R­-455MR

Automatic cutting machine for gate and parting line flash removal on small to medium size aluminum castings Aluminum 20" dia. x 7.8" H 110 lbs. (50 kg)

X6i-­FDH22R­ 455GR

Automatic grinding-deburring machine ideal for smal to medium size castings Gray and Ductile Iron, Brass, Bronze 20" dia. x 7.8" H 110 lbs. (50 kg)

X7­i-FDH22R­-455GR-­C

Automatic grinding-deburring machine ideal for small to medium size castings Gray and Ductile Iron, Brass, Bronze 20" dia. x 7.8" H 110 lbs. (50 kg)

X7i-­CDH22R­-455MR-­C

Automatic cutting machine for gate and parting line flash removal on small to medium size aluminum castings Aluminum 20" dia. x 7.8" H 110 lbs. (50 kg)

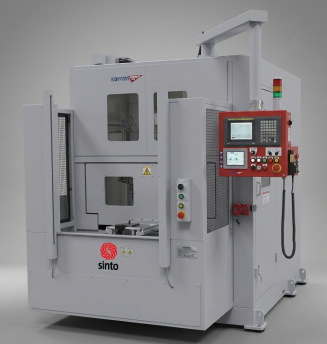

X7i-CDH22R-45H7MR-C

Automatic cutting machine for gate and parting line flash removal on small to medium size aluminum castings Aluminum 20" dia. x 14" H 154 lbs. (70 kg)

X7i-FDH22R-45H7GR-C

Automatic grinding-deburring machine ideal for small to medium size castings Gray and Ductile Iron, Brass, Bronze 20" x 14" 154 lbs. (70 kg)
